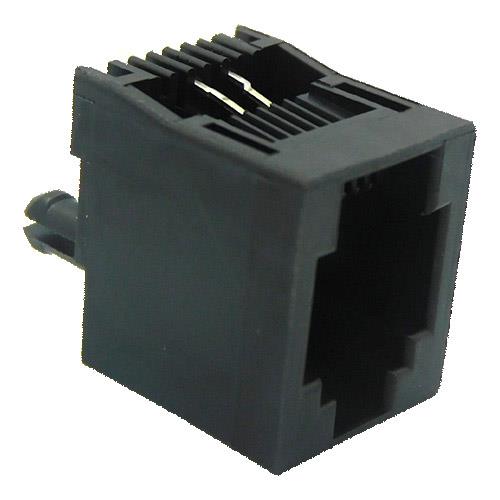

Stewart Connector SS-90000-005 Modular RJ11 jack Vertical 4 Contact 6 Position Unshielded

Color: Black

Pitch: 2.54 mm

Gender: Jack (Female)

Shielding: Unshielded

USOC Codes: RJ45

Application: 10 Base-T

Configuration: 1x1

Mating Cycles: 750 Cycle

Tab Direction: Tab Down

Current Rating: 1.5 A

Mounting Angle: Straight

Mounting Style: Through Hole

Voltage Rating: 125 VAC

Contact Plating: Gold

Number of Ports: 1 Port

Termination Style: Solder

Mounting Direction: Vertical

Number of Contacts: 4 Contact

Dielectric Strength: 1 kV

Flammability Rating: UL94 V-0

Number of Positions: 6 Position

Performance Category: Cat 3

Insulation Resistance: 1 GOhms

Operating Temperature Range: - 40 C to + 85 C

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 6P4C
