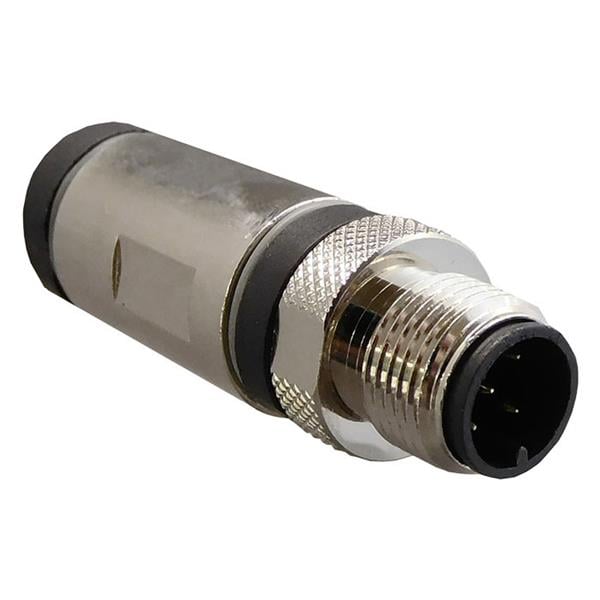

Stewart Connector SS-12000-018 Straight M12 A-Code Male Plug 5 Contacts
ModelSS-12000-018
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 15 mm
Coding: A Coded
Gender: Male
Length: 48.3 mm
Diameter: 8.3 mm
IP Rating: IP67
Body Style: Straight
Shell Style: Plug
Thread Size: M12
Unit Weight: 29.117 g
Contact Gender: Pin (Male)
Current Rating: 4 A
Mounting Style: Field Attachable-Installable
Voltage Rating: 500 VDC
Contact Plating: Gold
Housing Material: Thermoplastic (TP)
Locking Mechanism: Screw Locking
Termination Style: Solder Cup
Number of Contacts: 5 Contact
Insert / Contact Gender: Pin / Socket
