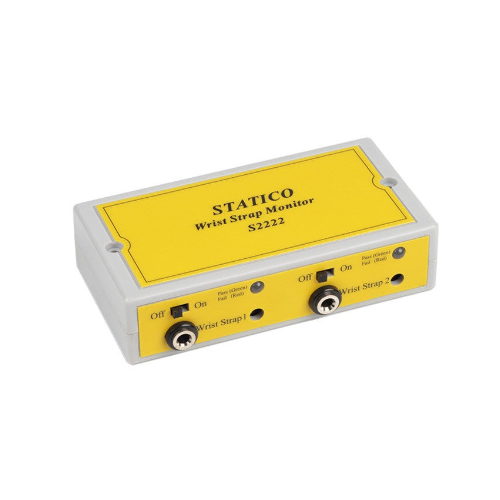

Statico S2222 Wrist Strap Monitoring System for Two-Operator

• On/Off Switch on the front panel

• When powered up & at the On position, Constantly Monitors the Wrist Strap for Skin Contact, 1 Meg Resistor, & Ground Connection

• LED Indicator on the front panel

a. Green for Pass

b. Red for Fail

• Wrist Strap Receptacle on the front panel

• 6V DC Receptacle on the back panel

• 2 Recessed holes for Mounting Screws

• Ground Connection Post on the back panel

• The S2221 is packed in a box of 5”X3.5”X2” (140X90X50mm) & consist of

-The Monitor 2-5/16”X2-1/4”X1”(60X55X25mm)

-A Grounding Wire

-2 Mounting Screws

- An AC/DC class 2 Adapter (Input: 120VAC 60Hz 35mA; Output: 6V DC 300mA), UL Listed
