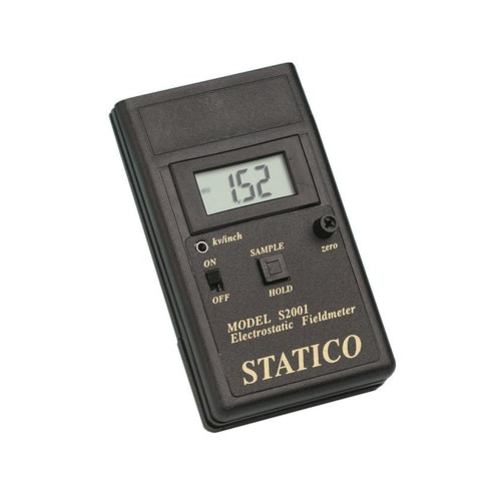

Statico S2001 Electrostatic Fieldmeter (+/- 0 - 19,99 KV)

Input: 9 VDC alkaline battery (included). Battery life in excess of 40 hours.

Display: 3 ½ digits, 0.4” (1 cm) digit height.

Output: Analog output through miniature jack, 1 V corresponds to 10 KV.

Response: 5 Hz at analog output, digital display updates 3 times per second.

Features: HOLD and low BATTERY indicators, automatic polarity.

Controls: ON/OFF side switch, SAMPLE/HOLD pushbutton, ZERO control.

Range: +/-0.00 to 19.99 KV @ 1” (2.5 cm), higher voltages may be measured at distances greater than 1”.

Accuracy: +/-5%, chopper stabilized (accuracy unaffected by air ionization); least significant digit of display indicates tens of volts

Environment: Operates at 0-40°C

Ground: Ground through conductive case; snap fastened ground cord provided.

Dimension: 4.2”LX2.4”WX0.90”D (10.7X6.1X2.3 cm).

Weight: 5 oz with battery (141.8 g).
