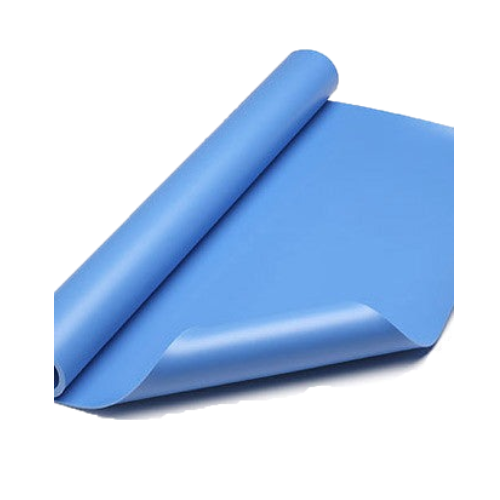

Statico S1500 Single-Layer Vinyl Matting

Colors: Blue, Light Grey

Emboss Patterns: Kid Grain (Cast on leatherette-embossed paper)

Gauges: 0.060”± 0.010” (1/16”) & 0.093” +/-0.010” (3/32”)

Tensile (ASTM D412): 900 lb/in sq minimum

Elongation (ASTM D412): 60%

Tear (ASTM D1004): 160 lb/in minimum

Durometer (ASTM D2240-75): 85 ± 5, Shore A

Resistance (ANSI/ESD S4.1 & 4.2) Rtg. (12% RH @ 100V): 7.0 x 10E8 - 9.0 x 109 Ohms

Decay Time (EIA 541): <2.0 Seconds

Suggested Service Temperature (2): -20 °F to +160 °F

Datasheet
