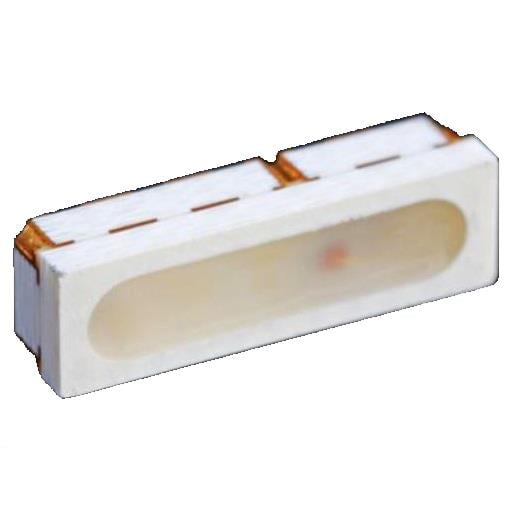

Stanley Electric CRGB1318FSE-TM Multi-Color LEDs Surface Mount LED

Width: 4.5 mm

Height: 1.35 mm

Length: 1.15 mm

Lens Color: Colorless

Lens Shape: Oval

Unit Weight: 11.500 mg

Power Rating: 90 mW, 126 mW, 126 mW

Viewing Angle: 110 deg x 110 deg

Mounting Style: SMD/SMT

Lens Transparency: Diffused

Illumination Color: RGB

Luminous Intensity: 750 mcd, 1750 mcd, 260 mcd

Moisture Sensitive: Yes

If - Forward Current: 24 mA, 20 mA, 14 mA

Vf - Forward Voltage: 2.2 V, 3.1 V, 3 V

Wavelength/Color Temperature: 622 nm, 529 nm, 470 nm

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
