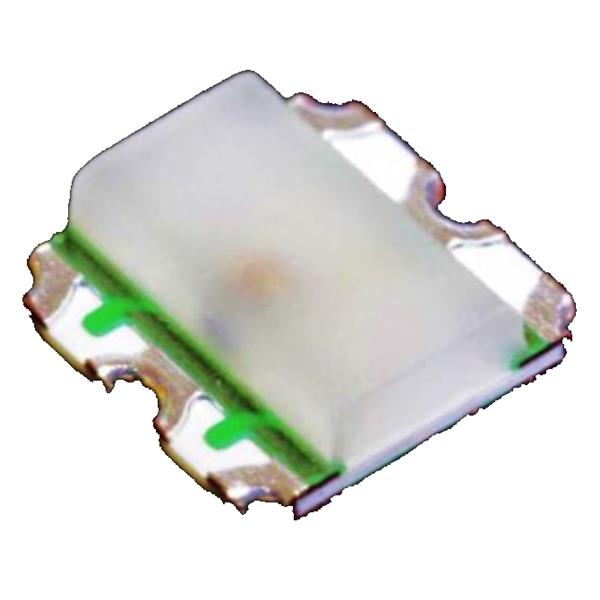

Stanley Electric ARGB1313HS-TR Multi-Color LEDs Surface Mount LED

Width: 2.04 mm

Height: 0.6 mm

Length: 2.04 mm

Lens Color: Colorless

Lens Shape: Rectangular

Unit Weight: 3.400 mg

Mounting Style: SMD/SMT

Lens Dimensions: 2.04 mm x 1 mm

Lens Transparency: Diffused

Illumination Color: RGB

Luminous Intensity: 450 mcd, 850 mcd, 180 mcd

Moisture Sensitive: Yes

If - Forward Current: 26 mA, 22 mA, 12 mA

Vf - Forward Voltage: 2.1 V, 3.2 V, 3.1 V

Wavelength/Color Temperature: 622 nm, 527 nm, 473 nm

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
