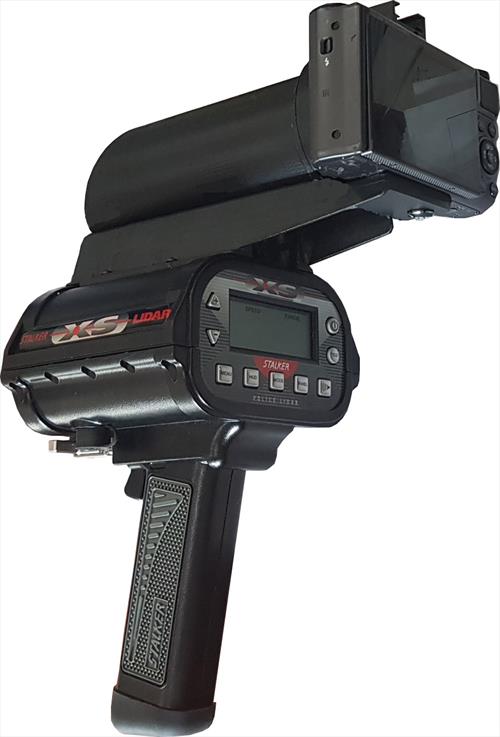

Stalker Lidar XS Photo Positive Speed Enforcement (Laser Accurate)

Weight:1.77 kg (3.9 lbs.)

Size:23.9cm H x 17.3cm L x 10.7cm W (9.4” x 6.8” x 4.2”)

Construction:Metal camera body, high Impact Resistant polymer housing to LIDAR

Power Supply:Battery Handle: 6.4V to 9.0V @ 400 ma. Nominal

Cigarette Cable: 6.4V to 16.0V @ 400ma. Nominal

Low voltage inhibit activates between 6.4V and 6.8V

Acquisition time:0.33 second

Speed Accuracy:+2.0 km/h, –2.0 km/h (+1 mph, –1 mph; +0.86, -0.86 knots)

Range Accuracy:+/- 15 cm (6 inches)

Nominal Lidar Range:Minimum < 1.5 meters (5 feet)

XS Model - Maximum 610 meters (2000 feet)

XLR Model - Maximum 1219 meters (4000 feet)

Temperature Range:-30° to +60° C, operating -40° to +85° C, non-operating

Data Output:USB 2.0

Humidity Protection:+37° C, 90% Relative Humidity, 8 hours minimum, operating

Certification card:Included

Operator Manual:Included

Camera Component

Communications:USB 2.0

Housing:Aluminum

Effective operating range:American plates – 75 to 400+ feet

European plates – 750+ feet.

Sensor:CMOS

Tablet Storage

Storage Device (minimum)H-P Pavilion X2 or equivalent

DATASHEET
