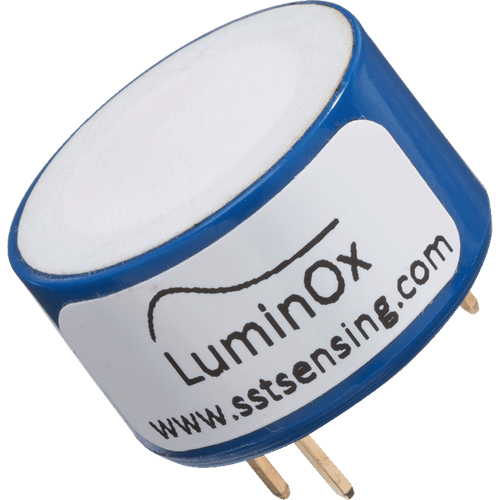

SST Sensing LOX-01 LuminOx O2 Sensors (100—1400mbar; 0—300 mbar ppO2)

Supply voltage (Vs): 5VDC (4.5VDC min. — 5.5VDC max.)

Supply current (Is): <7.5mA (streaming one sample per second), <20mA Peak

Output type: 3.3V TTL level UART (5V tolerant)

Temperature:

Operating: +10°C to +45°C

Storage: -30°C to +60°C

Humidity: 0—99% RH (non-condensing)

Barometric pressure range: 100—1400 mbar

Oxygen pressure range: 0—300 mbar ppO2

Response time T90: <30s (typical)

Accuracy:

ppO2: <2% FS

Temperature: Indication onlyaccuracy

Resolution:

ppO2: 0.1 mbar

Temperature: 0.1°C

Datasheet
