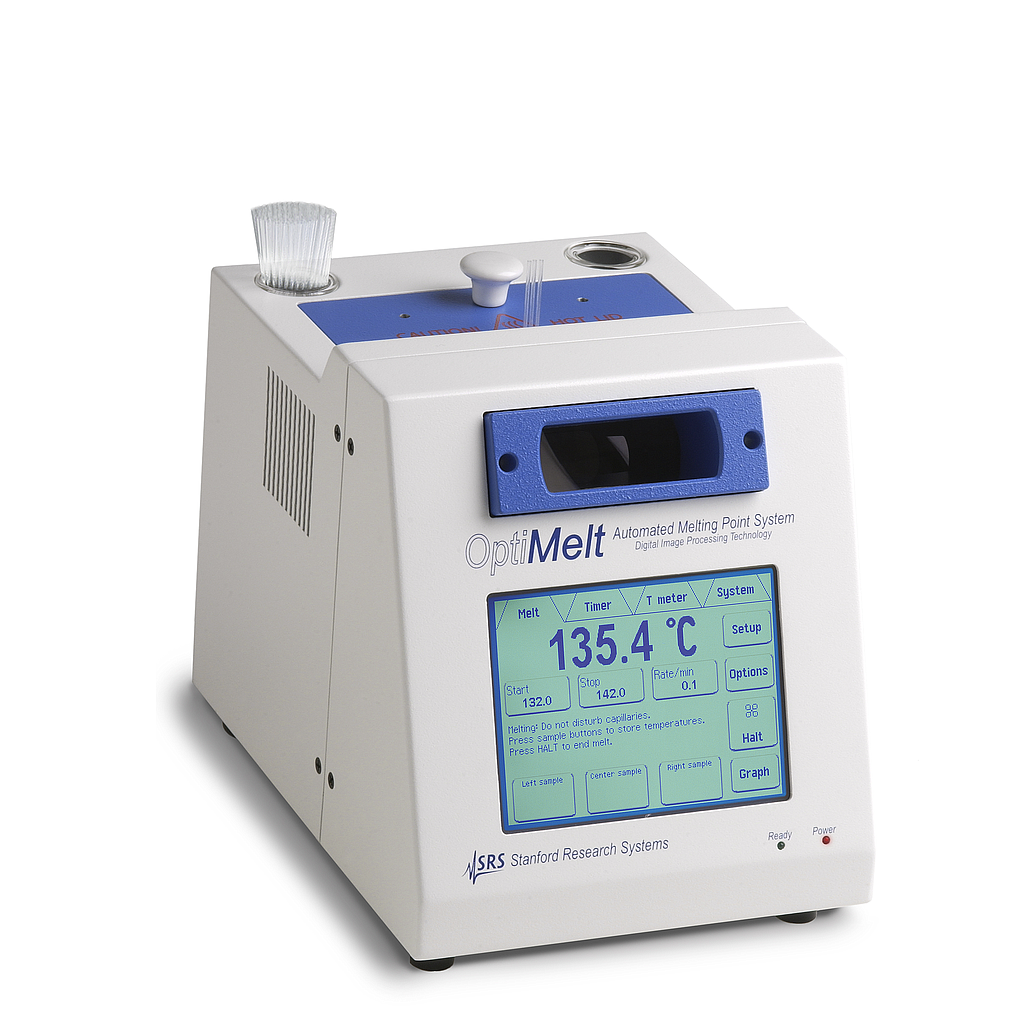

Stanford MPA100 Melting Point Apparatus (400 °C)

Temperature display: Melting point and melting point range

Start temp. range: (Ambient + 10 °C) to 396 °C, 0 °C min. set point

Stop temp. range: (Start temperature + 4 °C) to 400 °C

Temperature resolution: 0.1 °C

Ramp rate: 0.1 °C to 20 °C per minute (0.1 °C increments)

Heat-up time: 10 minutes (50 °C to 350 °C)

Cool-down time: 10 minutes (350 °C to 50 °C)

Temperature accuracy:

±0.3 °C (up to 100 °C)

±0.5 °C (up to 250 °C)

±0.8 °C (up to 400 °C)

Reproducibility: 0.2 °C

Temperature sensor: Pt RTD (built-in)

Oven control: Closed-loop PID

General:

Display: Back-lit, touchscreen LCD (5.8")

Printer interface: RS-232 serial port. Supports Epson compatible dot-matrix printers.

Computer interface: USB. All instrument functions can be queried and controlled through a high-level command set.

Capillaries:

Dimensions: 1.4 mm to 2.0 mm outside dia., 100 mm length

Capacity: Up to 3 tubes simultaneously

Fill height: 2 mm to 3 mm

Power: 90 to 264 VAC, 47 to 63 Hz, 125 W

Operating temperature: 0 °C to 40 °C, non-condensing

Weight: 9 lbs.

Dimensions: 7.5" × 10" × 8.5" (WHL)
