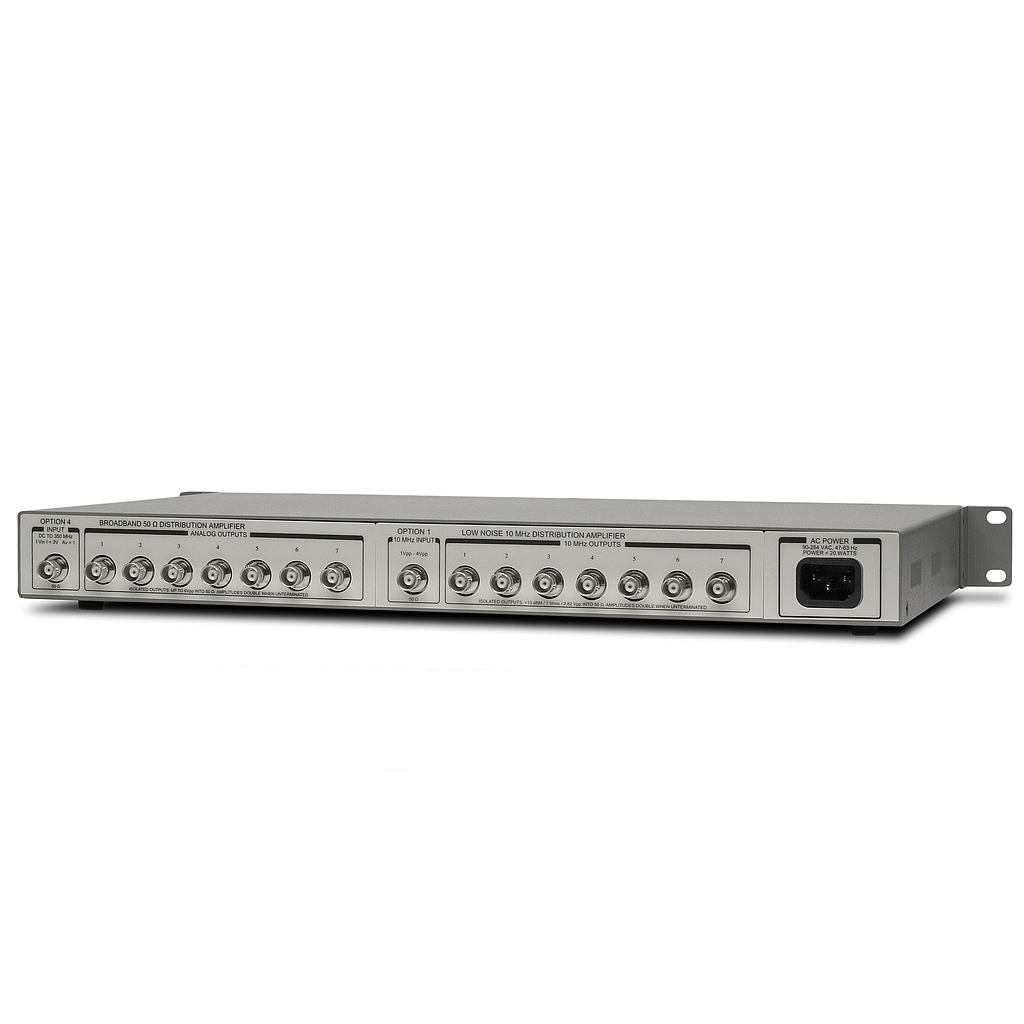

Stanford FS730/5 Distribution Amplifier (75 Ω, ±1 %)

Input:

Impedance: 75Ω, ±1 %

Linear range: ±2 V

Damage (DC): 5 VDC

Damage (1 µs): 100 V

Output:

Impedance: 75Ω, ±1 %

Nominal load: 75Ω

Performance (75Ω loads):

Gain (75Ω load): ×1.00, ±2 %

Gain (high-Z load): ×2.00, ±1 %

Bandwidth (-3 dB): >100 MHz

Noise at 1 kHz: <15 nV/√Hz

Offset: <1 mV

Isolation (10 MHz): >100 dB

Phase noise (10 MHz, +7 dBm input):

Offset (Hz): 1; 10; 100; 1k; 10k; 100k

Noise (dBc/Hz): -138; -147; -152; -153; -153; -153

General:

Power: 10 W, 100/120/220/240 VAC, 50/60 Hz

Dimensions:8.3" × 1.5" × 8.0" (WHL)
