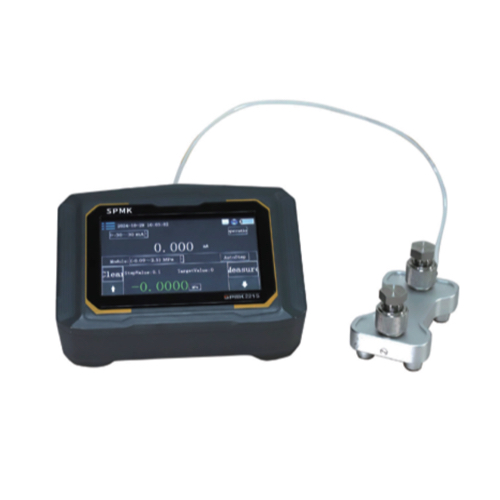

SPMK SPMK221S Portable Automatic Pressure Calibrator ((-85~250) kPa/ (-0.085~2.0) MPa)

Pressure Auto-generation Range: (−85 ~ 250) kPa/ (−0.085 ~ 2.0) MPa

Built-in Pressure Module: (−100 ~ 250) kPa/ (−0.1 ~ 2.0) MPa

Control Stability: <0.005% FS/ <0.005% FS

Voltage Measurement:

 Range: (−30 ~ 30) V

 Resolution: 0.1 mV

 Accuracy: ±(0.01% RD + 0.005% FS)

Current Measurement:

 Range: (−30 ~ 30) mA

 Resolution: 0.1 μA

 Accuracy: ±(0.01% RD + 0.005% FS)

Display: 4/5/6-digit display optional

Usage Environment:

 Ambient Temperature: (−10 ~ 50) °C

 Relative Humidity: <90% non-condensing

 Atmospheric Pressure: (86 ~ 106) kPa.a

Pressure Connection: 1 × G 1/8 standard thread

Battery Life: 8 hours

Dimensions: 241 mm (L) × 168 mm (W) × 73 mm (H)

Weight: 2.6 kg

Datasheet
