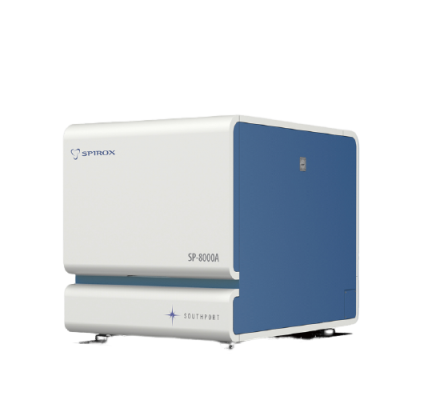

SPIROX SP8000A Laser Scanning Confocal Measurement Development Platform (50X FOV 200μm x 200μm)

Measurement Method: Laser scanning confocal microscope

Laser Wavelength: Up to 4 LASERs (Laser source option: 405nm, 532nm, 633nm, 785nm)

Input/Output Port: One Laser input port (free space); Output: Signal through fiber (FC/PC; SMA)

Objective:

5X FOV 2mm x 2mm

10X FOV 1mm x 1mm

20X FOV 500μm x 500μm

50X FOV 200μm x 200μm

Built-in OM (Optical Microscope) System: Epi-illumination: Adjustable white light LED (IR option); 3MP, 1” Color CMOS Camera

Motor-Z Focusing System

Travel range: 30mm

Resolution (typical): 0.02μm

Repeatability: 0.1μm

Motor: 2 phase stepper motor

High precision joystick

XY Stage

Manual stage range: 100mm x 100mm

Motorized stage (Optional):

Travel range: 205mm x 205mm (8")

Resolution: 1nm

Repeatability: 0.025μm

Velocity: 90mm/s

2-phase stepper motor

Detector: Biakali PMT, Spectral response: 185nm - 750nm

Data Station

OS: Windows 11

Interface USB 3.0

Discrete display card

HDD > 1T

24” LCD display

Weight: 80 KG

Dimension:

Closed: L 755mm x W 560mm x H 629mm

Open: L 901mm x W 560mm x H 957mm

Electrical Character: 110/220V 50/60Hz AC, 150W
