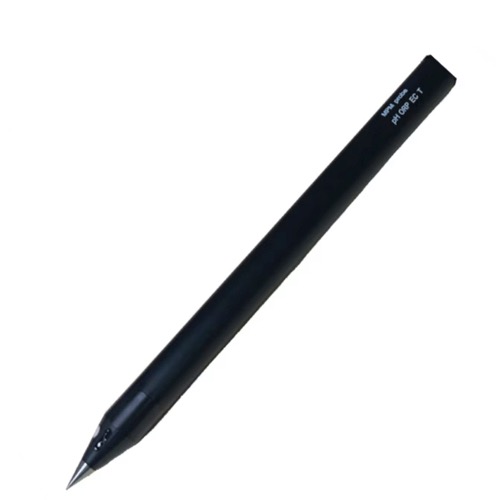

Spectrum Technologies 2128RE FieldScout Wireless Pinpoint Tip ISFET pH/EC/ORP Replacement Probe (0.00 ~ 14.00; -2,000 ~ +2,000m; 50 ~ 111,800μS/cm)

CHARACTERISTIC

Connection: BLE (Bluetooth Low Energy) wireless connection to mobile device

ATC (Auto Temperature Correction): Yes

Status: RGB LED for status update and recognition to cloud-based application

Dimensions: 8.8" x 1.0" x 0.8" (224mm x 24.2mm x 20mm)

Probe Material: ABS/PEEK/Stainless Steel

Probe Length: 5.0" (128mm)

Data Storage: Transmitter stores data when mobile device is disconnected

Operating/Storage Temperature: 32°F to 176°F (0°C to 80°C) and 30% to 80% RH

Battery: Wireless Chargeable Battery

Battery Operation Time: 2-3 Weeks

Battery Charge Time: 2 Hours

pH

Sensor: Glass-Free Ion Sensitive Field Effect Transistor (ISFET) Semiconductor

Range: 0.00 to 14.00

Accuracy: ± 0.02

Resolution: 0.01

Calibration: 1-, 2-, 3- and 5-point calibration

TEMPERATURE

Sensor: NTC

Range: 32°F - 176°F (0°C - 80°C)

Accuracy: 1%

Resolution: 0.1°F (0.1°C)

ELECTRICAL CONDUCTIVITY (EC)

Sensor: 4-Electrode EC Sensor

Range: 50 - 111,800μS/cm

Accuracy (50 - 12,880μS/cm): Within 1%

Accuracy (50 - 111,800μS/cm): Within 10%

Resolution (50 - 12,880μS/cm): 0.5 nS/cm

Resolution (50 - 111,800μS/cm): 50 nS/cm

Calibration: At Factory/1-Point Calibration

OXIDATION REDUCTION POTENTIAL

Range: -2,000 - +2,000mV

Accuracy: ±0.2mV

Resolution: 0.1mV

Calibration: At Factory

Flyer

Manual

Catalog

The FieldScout Wireless ISFET ph/EC pinpoint tip replacement probe is used with the FieldScout Wireless ISFET pH/EC Probe (Item #2128WE)
