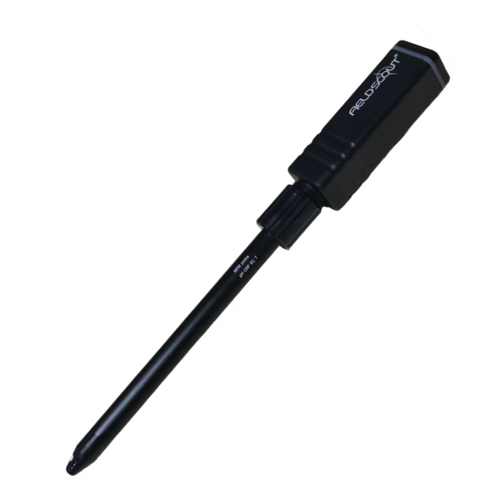

Spectrum Technologies 2127WE FieldScout Wireless Blunt Tip ISFET pH/EC/ORP Probe (0.00 ~ 14.00; -2,000 ~ +2,000m; 50 ~ 111,800μS/cm)

CHARACTERISTIC

Connection: BLE (Bluetooth Low Energy) wireless connection to mobile device

ATC (Auto Temperature Correction): Yes

Status: RGB LED for status update and recognition to cloud-based application

Dimensions: 8.8" x 1.0" x 0.8" (224mm x 24.2mm x 20mm)

Probe Material: ABS/PEEK/Stainless Steel

Probe Length: 5.0" (128mm)

Data Storage: Transmitter stores data when mobile device is disconnected

Operating/Storage Temperature: 32°F to 176°F (0°C to 80°C) and 30% to 80% RH

Battery: Wireless Chargeable Battery

Battery Operation Time: 2-3 Weeks

Battery Charge Time: 2 Hours

pH

Sensor: Glass-Free Ion Sensitive Field Effect Transistor (ISFET) Semiconductor

Range: 0.00 to 14.00

Accuracy: ± 0.02

Resolution: 0.01

Calibration: 1-, 2-, 3- and 5-point calibration

TEMPERATURE

Sensor: NTC

Range: 32°F - 176°F (0°C - 80°C)

Accuracy: 1%

Resolution: 0.1°F (0.1°C)

ELECTRICAL CONDUCTIVITY (EC)

Sensor: 4-Electrode EC Sensor

Range: 50 - 111,800μS/cm

Accuracy (50 - 12,880μS/cm): Within 1%

Accuracy (50 - 111,800μS/cm): Within 10%

Resolution (50 - 12,880μS/cm): 0.5 nS/cm

Resolution (50 - 111,800μS/cm): 50 nS/cm

Calibration: At Factory/1-Point Calibration

OXIDATION REDUCTION POTENTIAL

Range: -2,000 - +2,000mV

Accuracy: ±0.2mV

Resolution: 0.1mV

Calibration: At Factory

Flyer

Manual

Catalog

The FieldScout Wireless ISFET Blunt Tip pH/EC Probe measures pH for consistent quality plants. Easy and accurate with BLE (Bluetooth Low Energy) wireless connection to your mobile device. Sample directly in plug trays, pots, containers, solutions and soilless media. Download the FieldScout pH/EC/ORP app to connect your probe and follow the instructions to calibrate and begin taking measurements. Connect up to 6 probes for simultaneous wireless measurements. Receive real time notifications whenever the value of the pH is out of range. Includes pre-drill stick, brush to clean the probe, wireless base and charging cord, pH4, pH7 and conductivity standard solutions for calibration and hard carrying case.
