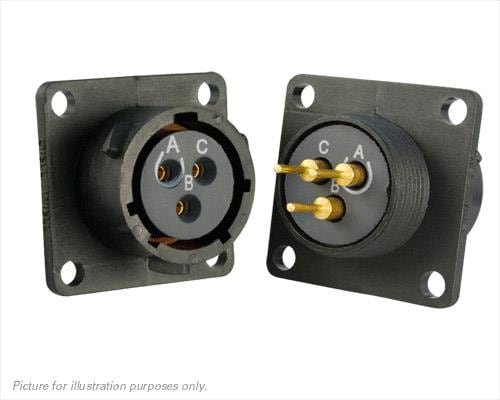

Eaton Souriau-Sunbank UTS012D3S Receptacles 3P SQ FLANGE SOCKET RECEPTACLE SIZE 12D
ModelUTS012D3S
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Black
Width: 26.2 mm
Height: 21.5 mm
Length: 26.2 mm
Diameter: 19 mm
IP Rating: IP68, IP69K
Shell Size: 12
Shell Style: Square Flange
Mating Style: Bayonet
Mating Cycles: 250
Cable Diameter: 16 mm
Contact Gender: Socket (Female)
Current Rating: 13 A
Housing Gender: Female
Mounting Angle: Straight
Mounting Style: Panel Mount
Shell Material: Plastic
Contact Plating: Gold
Contact Material: Brass
Termination Style: Solder Pin
Insert Arrangement: 3
Flammability Rating: UL 94 V-0
Number of Positions: 3 Position
