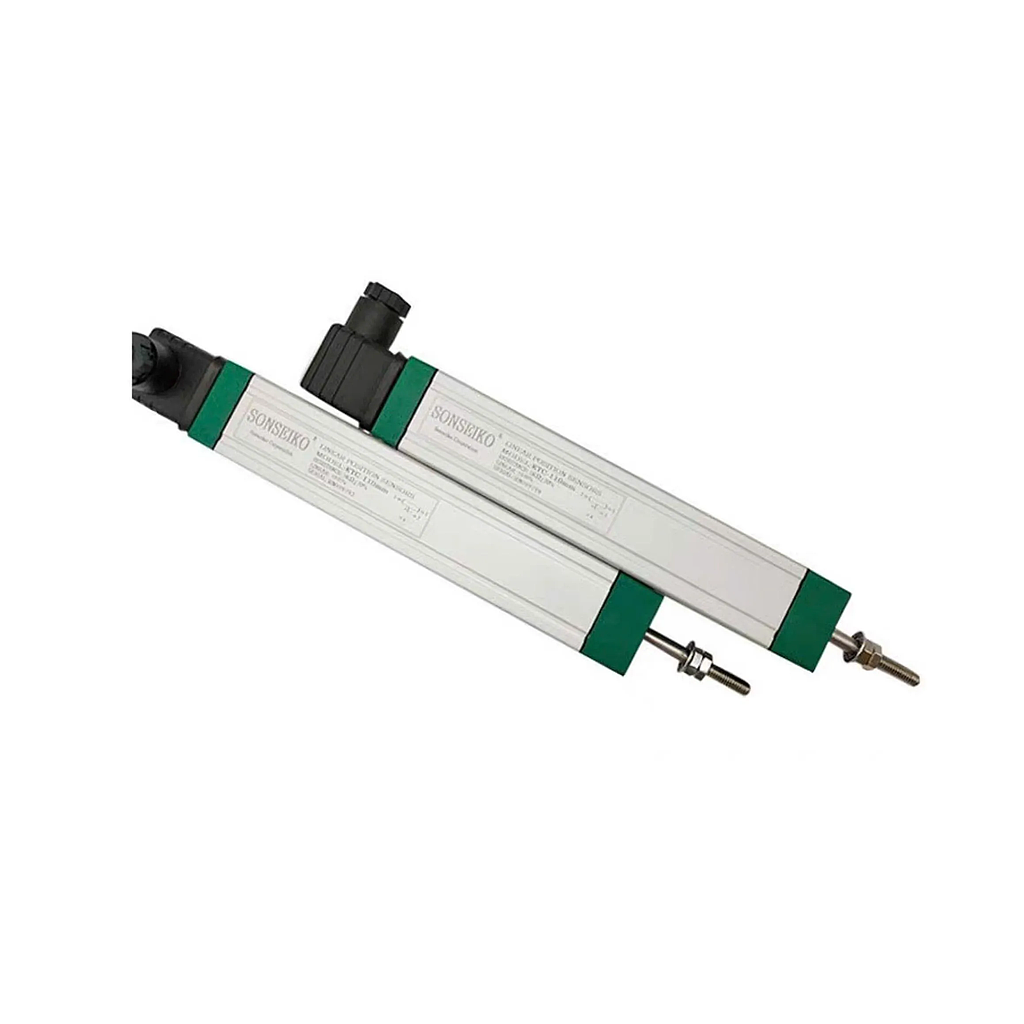

Sonseiko KTC- 250MM Linear Motion Position Sensors

Length: 250mm

Mechanical

Typical Life Cycle: > 100 x 10^6 cycles, > 25 x 10^6 m

Stroke: > 50 - 1250 mm

Linearity up to: ± 0.05%

High Resolution: Infinite

Repeatability: ± 0.01 mm

Max. operating speed: 10 m/s

Environmental

Housing: Anodized Aluminium Housing

Operating Temperature: -30... +100° C

Storage Temperature: -50...+120° C

Electrical

Current resistance: ≤ 10mA

Current wiper: ≤ 1 mA

Operating Force: ≤ 2N

Power Consumption: 3W - 10W

Output Smoothness: <± 0.1% against input voltage

Input Voltage: 60 V max

Insulation Voltage: 500V - 1min Residue < 5 µ A
