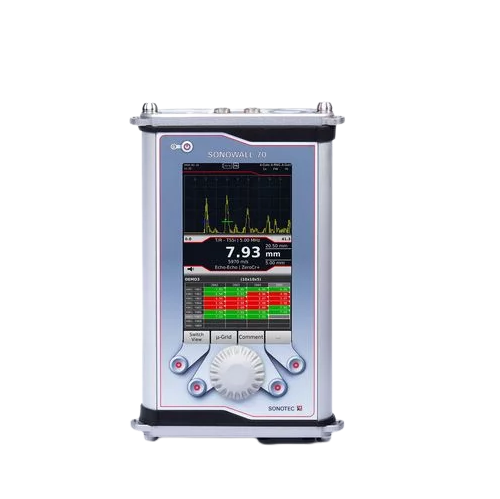

SONOTEC SONOWALL 70 Ultrasonic Thickness Gauge (~10 000 mm)

General Data

Standards: DIN EN 15317, DIN EN 61326, ASTM E 1324, ASTM E 317

Ambient temperature: −20°C ... +60°C

Display: 5" TFT Screen, 800 px x 480 px, 60 Hz

Measurement methods: Single-Echo, Echo-Echo

Size (WxHxD): 195mm x 115mm x 40mm

Weight: 990 g

Protection Class: IP67 (IP40 for device version with video connection)

Internal Memory: 8 GB

External Memory: MicroSD card up to max. 128 GB

Resolution: Up to 0.001 mm

Scan: 100 MSps @ 12 Bit

Measurement Range: Up to 10 000 mm (20 000 mm with screen shift)

Probe Connection: 2 x LEMO 00 (IP67)

Transmitter

Bandwidth: 0.5 MHz ... 15 MHz

Pulse: Negative rectangle (single pulse)

Pulse Width: 20 ns ... 500 ns, in 5-ns-steps

Voltage: 0V ... 400V, in 10-V-steps

Damping: 50 Ohm; 400 Ohm

Receiver

Dynamic Range: Up to 110 dB

Amplifier Bandwidth: 0.2 MHz ... 20 MHz

Digital Filters: 1/2/4/5/7.5/10/15/0.5-20 MHz (EN 12688-1 certified)

Input Impedance: 500 Ohm (in T/R-mode)
