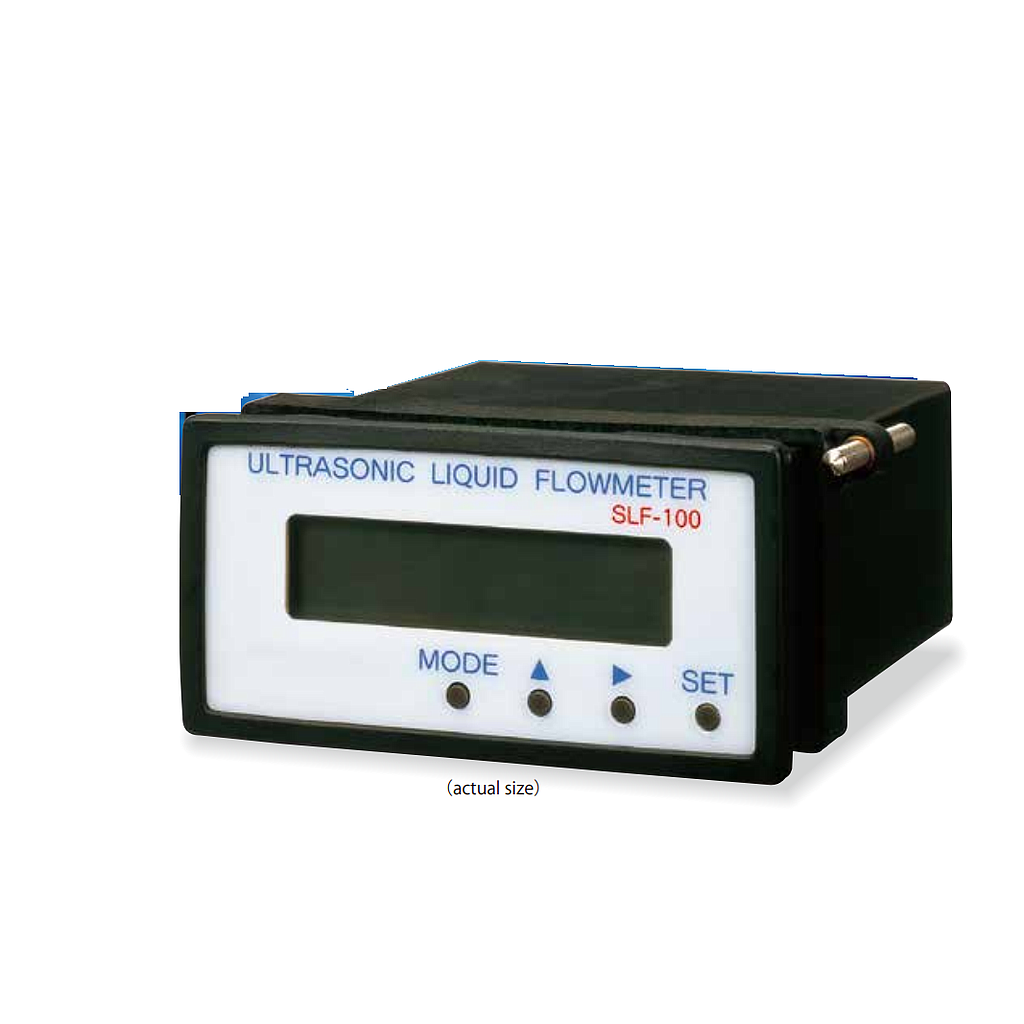

SONIC SLF-100 Ultrasonic Liquid Flow Meter

●Convertor

Measurement method: Ultrasonic transit time method

Environment conditions: Temperature:-10〜50℃

Display function: LCD display(16characters× 2lines) Instantaneous flow rate, or Integrated flow rate

Configuration menu: Measurement range, Measurement unit, etc.

Accuracy: ±2%RD(flow speed 1〜10m/s)

±2cm/s(flow speed less than 1m/s)

Output: Analog(DC 4〜20mA, load resistance: less than 450Ω)

Pulse(Open collector standard 30V, 0.25A)

Alarm(Open collector standard 30V, 0.25A)

Power supply DC12〜30V

Power consumption: less than 2.5VA

Weight: Appox. 330g

●Sensor

Model: SLT-12, SLT-14, STL-15

Structure: Clamp-on type

Material: PVC, PTFE

Applicable liquids:de-ionized water, chemical solution

Applicable pipes: Nominal diameter SLT-12: 3/4 inch(I.D.15.88 O.D.19.05),

1/2inch (I.D.9.53 O.D.12.70),

3/8inch (I.D.6.35 O.D.9.53)

SLT-14: 3/4inch (I.D.15.88 O.D.19.05),

1/2inch (I.D.9.53 O.D.12.70)

　　 SLT-15: 1inch (I.D.22.23 O.D.25.4),

3/4inch (I.D.15.88 O.D.19.05)

Material: PFA

Environment conditions of flow: Temperature: 10〜60℃ (SLT-12),

10〜70℃ (SLT-14),

10〜50℃ (SLT-15)

Cable: 5m(max 10m)

Measurement range: 0.5〜230L/min(1 inch),

0.2〜120 L/min(3/4 inch),

0.1〜40 L/min(1/2 inch),

0.1〜20 L/min(3/8 inch)

Weight: STL-12 Approx. 450g

STL-14 Approx. 350g

STL-15 Approx. 360g

Datasheet

FEATURES

● Clamp-on type

● Wide measurement range ability

● Low power consumption

● Compact design
