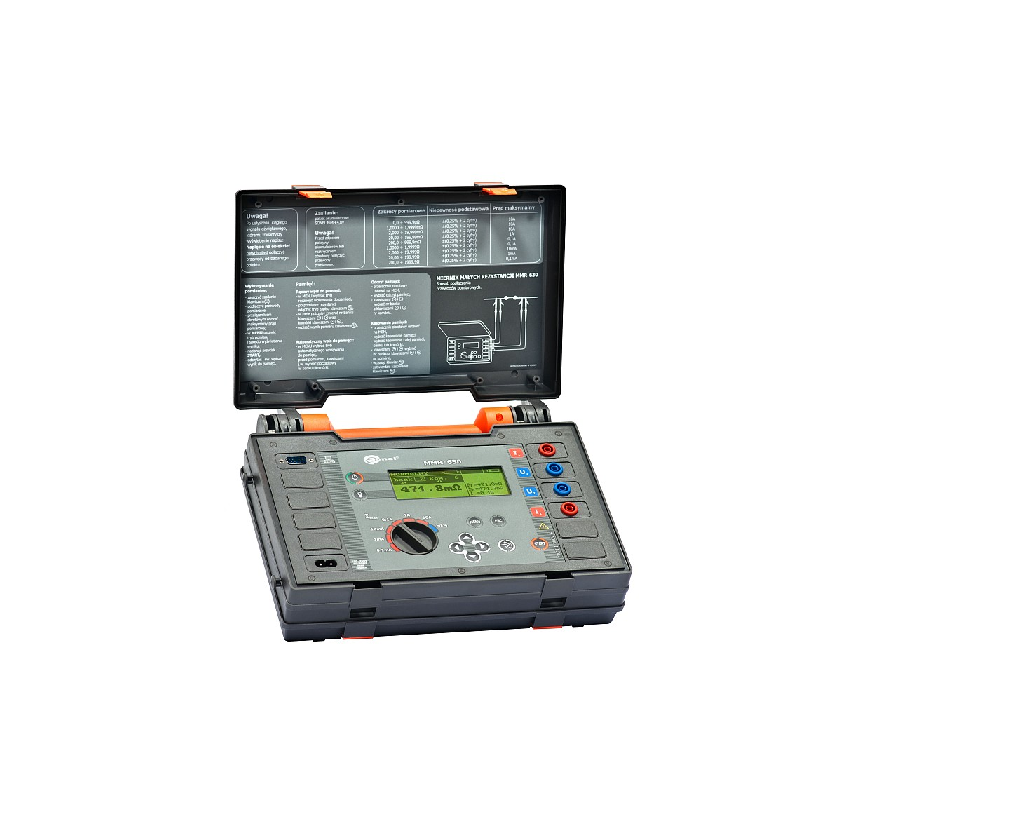

SONEL MMR-630 Microohmmeter (0.1μΩ ~1999,9 Ω, 10A)

- Measurement of resistive object type:

+ welded and soldered connections, equipotential bonding, earth wire,

+ terminals and connectors, rail welded joints, cables and wires,

+ measurement 4-pole method.

- Measurement of inductive object type:

+ coils (motors and transformers), low resistance coils.

- Range/ Resolution

+ 0...999,9μΩ /0,1μΩ (Current test 10 A)

+ 1,0000...1,9999 mΩ /0,0001 mΩ (Current test 10 A)

+ 2,000...19,999 mΩ /0,001 mΩ (Current test 10 A)

+ 20,00...199,99 mΩ /0,01 mΩ (Current test 1 A)

+ 200,0...999,9 mΩ /0,1 mΩ (Current test 0,1 A)

+ 1,0000...1,9999 Ω /0,0001 Ω (Current test 0,1 A )

+ 2,000...19,999 Ω /0,001 Ω (Current test 10 mA)

+ 20,00...199,99 Ω /0,01 Ω (Current test 0,1 mA)

+ 200,0...1999,9 Ω /0,1 Ω (Current test 0,1 mA)

-Accuracy : ±(0,25% m.v. + 2 digits)

Includes:

- Test lead 3m (2 pcs.) WAPRZ003DZBB

- „Crocodile” clip K03; black (4 pcs.) WAKROBL30K03

- Kelvin vice K06 (2 psc.) WAKROKELK06

- Carrying case L1 WAFUTL1

- Cable for battery charger WAPRZLAD230

- Ni-MH battery package 4,8V 3Ah WAAKU03

- RS-232 serial transmission cable WAPRZRS232

- Double pin Kelvin probe (2 pcs.) WASONKEL2OGB

- Hanging straps WAPOZSZE1

- User manual

- Calibration certificate issued by calibration laboratory (MMR-630) LSWPLMMR630
