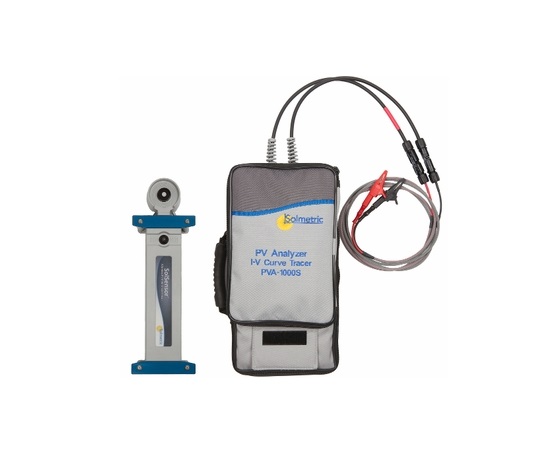

Solmetric PVA-1000S I-V Curve Tracer (0-20 A; 0–1000 V)

PV voltage range: 0–1000 V

Current range: 0-20 A (30A option also available)

Voltage accuracy (0 to 55°C): ±0.5% ± 0.25 V

Current accuracy (0 to 55°C): ±0.5% ± 0.04 A

Voltage resolution: 25 mV

Current resolution: 2 mA

Measurement duration: 4s (typical, from ‘Measure Now’ to returned I-V trace)

I-V sweep duration: 0.05 - 2s. Typically 0.2s for PI/ strings.

I-V trace points: 100 or 500, user selectable

Operating temp range: -10 to +65°C

Battery life: 12 hr continuous operation, more than 1000 I-V curves.

Protection features: Over-voltage, -current, -temperature, and reverse polarity

PVA-1000S Includes:

• I-V Measurement Unit with shoulder strap

• PVA Software for Windows™

• Wireless USB Interface for Windows™ laptop or tablet

• Connector savers, MC-4 to MC-3 adaptors, MC-4 connector tool

• Battery charger (AC adapter)

• Short USB extension cable
