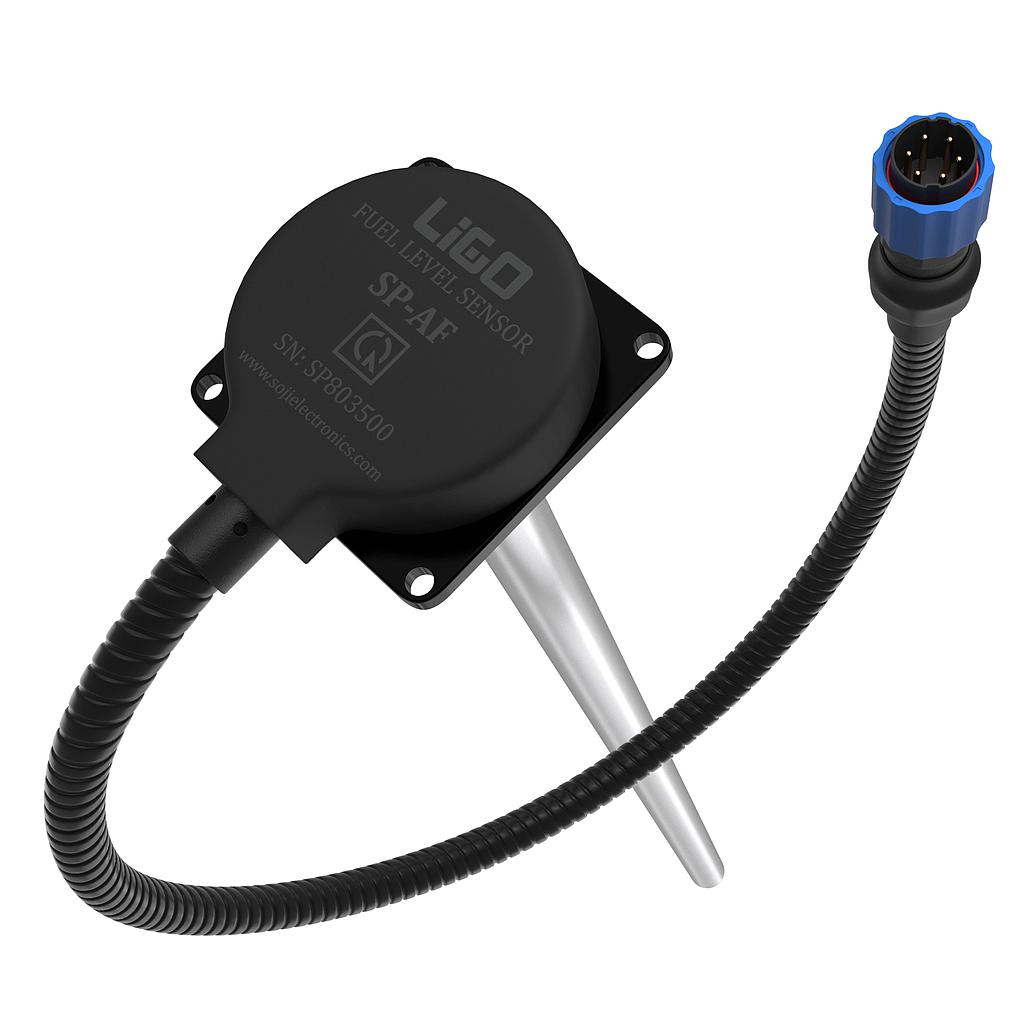

SOJI LIGO SP - AFL7 Fuel level sensor (20mA; 9-37V)

Standard length (L),mm

700, 1000, 1500...up to 6000

Measuring error, %: ± 0.5 %

Output signal: Analog (1-10V),Frequency (500-2000Hz).

Power supply (DC input voltage, V): 9-37

Baud rate, bit/sec : 9600

Maximum power consumption, mA : 20

Waterproof standard (Ingress protection rating, IP): IP67

Operating temperature, °C: -40...+85

Maximum allowed humidity level,%: 100

Resolution, bit : 12

Average sampling period, s: 0...120

Message interval, s : Continuous

Average service life, years (minimum): 8

Datasheet
