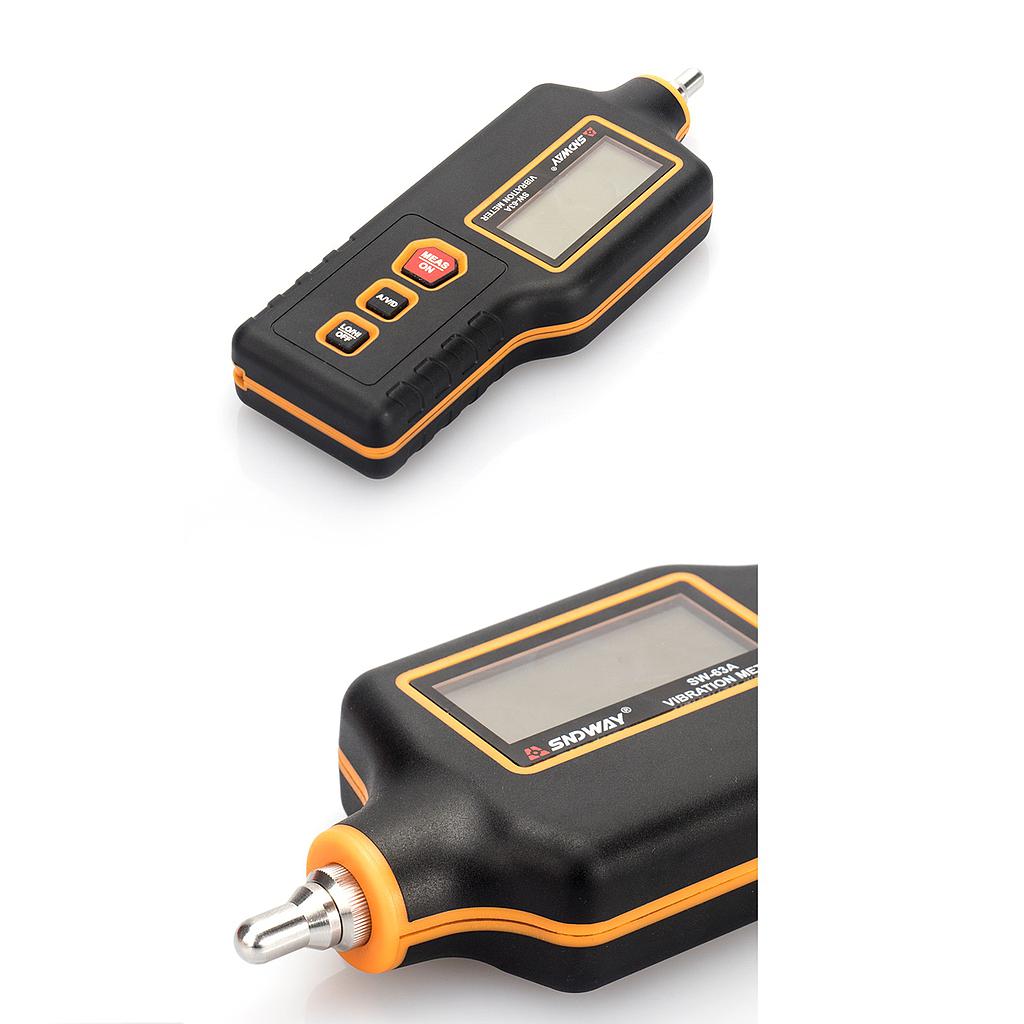

SNDWAY SW-63A Vibration Meter (±(5%+2dgts))

Display: LCD Screen

Sensor: Piezoelectric acceleration sensor

Sensor Accessories: Long Sensor, Short sensor

Acceleration Range: 0.1”199.9m/s2

Speed Range: 0.1-199.9mm/s

Velocity Range0.001-1.999mm

Displacement Range Accuracy: ±(5%+2dgts)

Testing Frequency in Low Frequency Acceleration: 10Hz-1KHz

Testing Frequency in High Frequency Acceleration: 1KHz-10KHz

Testing Frequency of Velocity: 10Hz-1KHz

Testing Frequency of Displacement: 10Hz-500Hz

Storage: 200 sets

Automatic Shutdown

Data Refresh Time: 500ms

Power Supply: 2x1.SV AAA

Battery: 7 hours for continuous working

Working Temperature: 0°C-50°C

Working Humidity: 20%-80%RH

Storage Temperature: -20°C-60°C

Storage Humidity: 20%”80%RH

Altitude: <2000m

Dimension: 176*65*28mm
