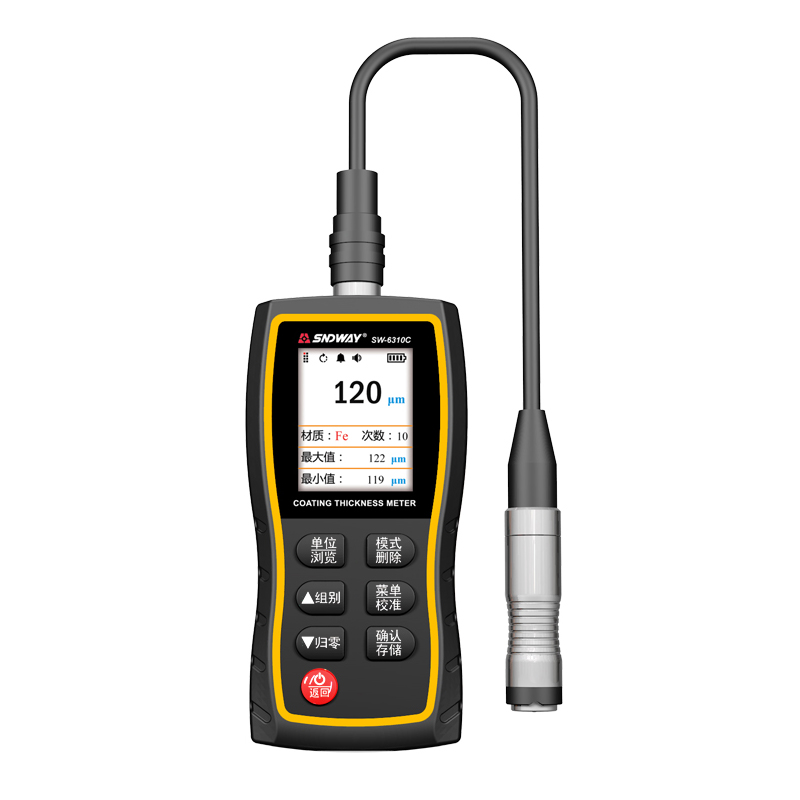

SNDWAY SW-6310C Coating Thickness Meter

Display Screen: 2.0" 240x320 TFT LCD

Measuring Range: Magnetic: 0-1700µm ; Non magnetic: 0-1700µm

Resolution: 0.1µm @ (0-99.9µm); 1µm @ (100-1700µm)

Indication Error: ±(2+2%*H)µm @ (0-500µm); ±(2.5%*H)µm @ (500-1700µm)

MIN Measuring Area: Magnetic: 25x25mm; Non magnetic: 25x25mm

MIN Curvature: Convexity: Smm; Concavity: 30mm

MIN Thickness of Substrate: Magnetc: 0.2mm ; Non magnetic: 0.05mm

Memory: 8 Sets*32 Units

Power Supply: 3x1.5V AAA

Charging Specification: Not rechargeable

Working Temperature & Humidity:0°C-50°C, 10%-80%RH

Storage Temperature & Humidity:-10°C- 60°C, 10% - 70%RH

Dimension:128x63.5x27mm
