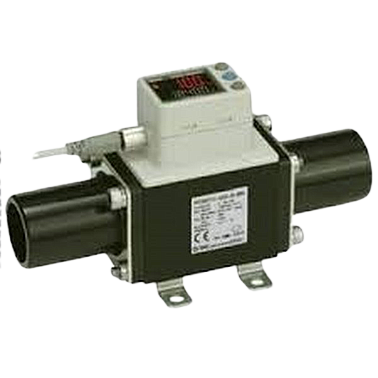

SMC PF3W704-N03-DT-MR Flow Switch

Fluid type: Water

Flow rate range (Max. Value)(L/min): to less than 10

Sensor, Monitor structure: [Integrated Type] Display Integrated

Output method: NPN Open Collector / Analog

Pipe port type: Female Thread

Plumbing thread type: [NPT] NPT

Plumbing thread nominal: [3/8] 3/8

Pressure type: Standard

Pressure resistant(MPa): 1.5

Flow rate type: Standard

Operating humidity range(%): 35~85

Number of input points: 1

Number of output points: 2

Power supply type: DC

Power supply voltage(V): [12~24] 12～24 ±10%

Pipe connection direction: 2-way

Liquid contact parts material: Resin + Metal

Display: Digital

Protection structure: IP65

Lead wire: Lead wire with M8 connector available (3 m)

Temperature sensors: With temperature sensor

Unit (Instantaneous Flow Rate): L/min

Unit (Integrated Flow Rate): L

Unit (Temperature): °C

Rating flow range(L/min): 0.5 to 4

Analog current output(mA): 4 to 20
