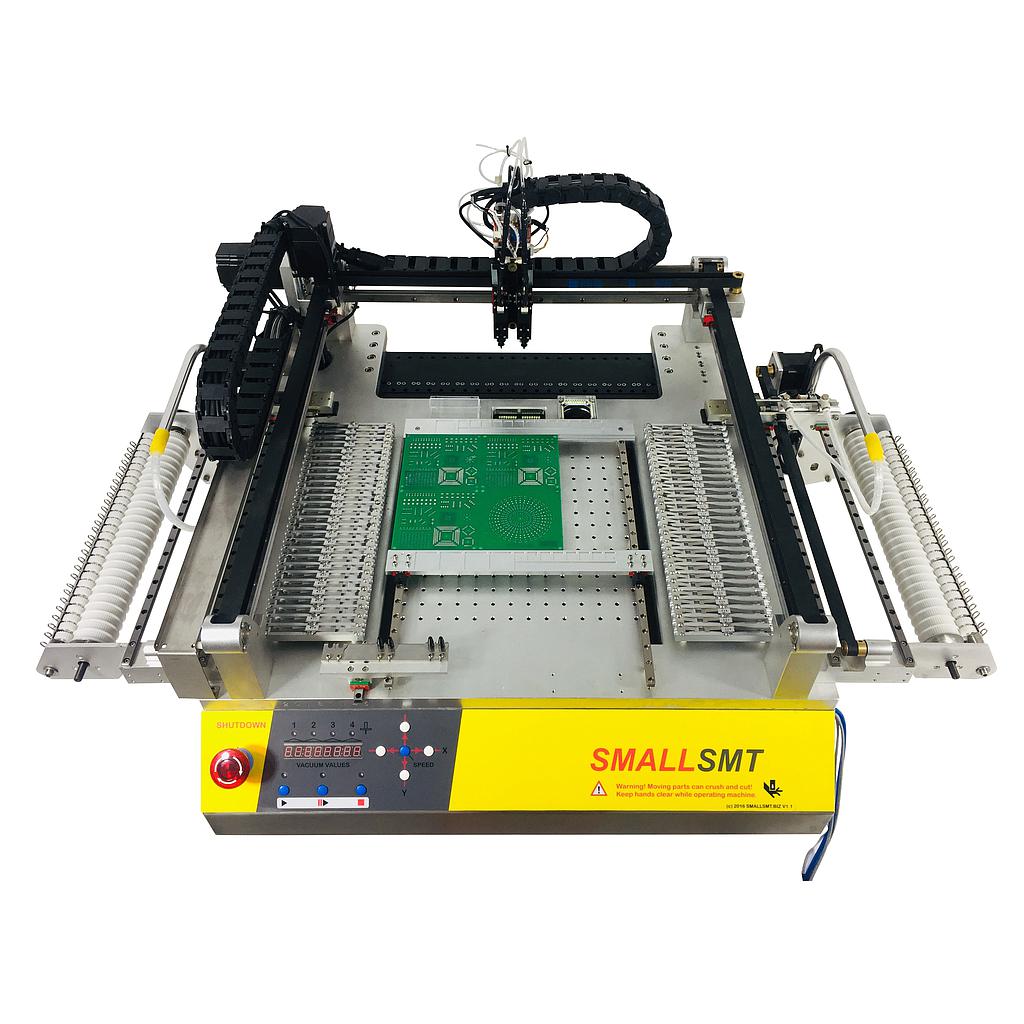

Smallsmt VP-2500D-CL22-WNE Double Head CL and Push Feeder Machine (X350mm, Y350mm, Z15mm)

Moving Area: X350mm, Y350mm, Z15mm

Working Area: 300x250mm

Bottom cameras: 2x + 1x 24x24mm

Top Camera: 1x

Size: tbd

Package: tbd

Machine Weight: tbd

Package Weight: tbd

Included:

6 slot nozzle changer

22x8mm CL feeder slots on north (no CL feeder included)

26x 8mm push feeder West

3x bottom camera

1x top camera

V2 VisionPlacer software

USB video digitizer

USB serial converter

Tool set

74 active feeder lines possible in our basic entry machine!

22x CL feeder slots 8mm on North side

26x push feeder West side included!

26x push feeder East side optional!

6 slot nozzle changer included!

Small tray included

Part size from 0402 to 24x24mm possible >=0.5mm pitch standard
