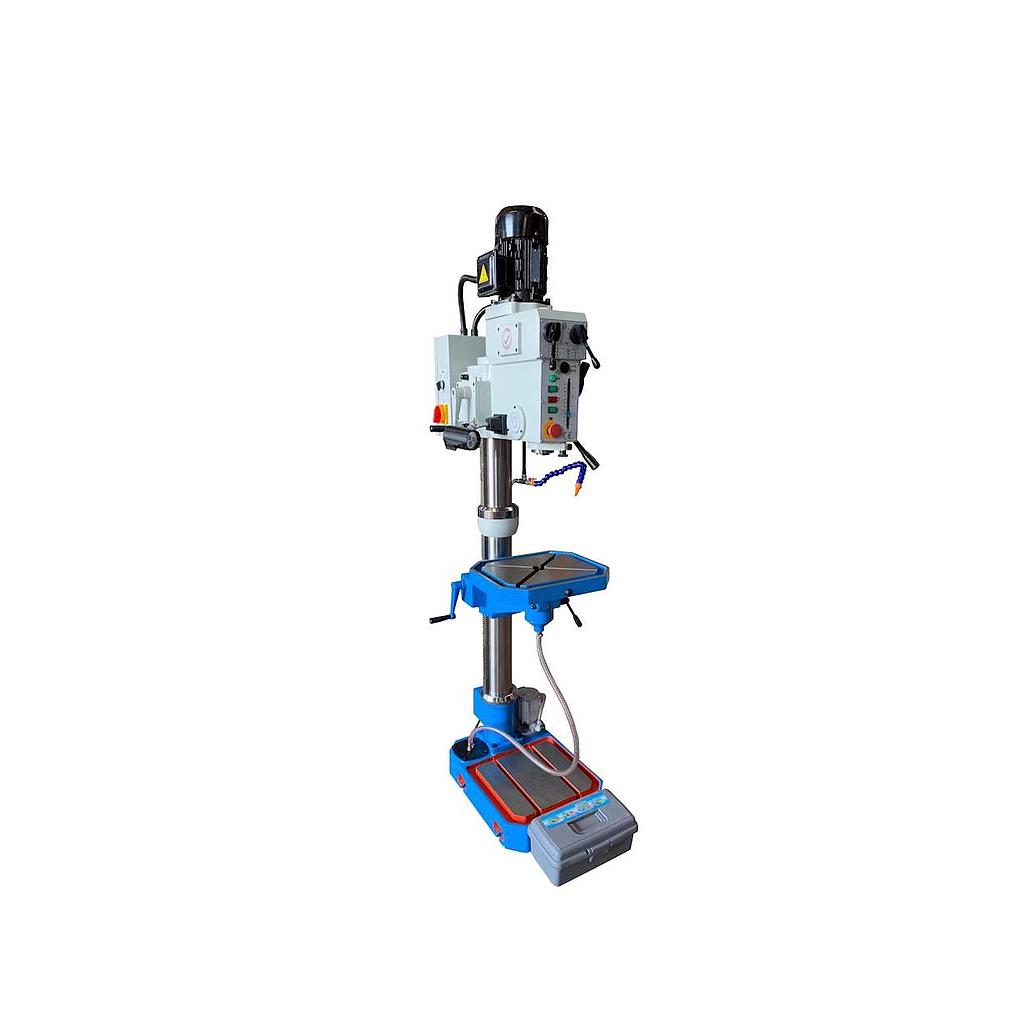

SMAC ZN5025 Vertical Drilling Machine

Max drilling diameter and tapping diameter: Φ25/M16

Max travel of spindle: 110

Max distance from spindle to generating line of column: 240

Max distance between spindle end to the worktable surface: 630

Max distance from spindle end to the surface of base worktable: 1100

Max travel of spindle box: 250

Max travel of worktable and bracket (Mannual/Mechanical): 450

Spindle taper bore: 3

Spindle speed steps: 6

Spindle speed range: 125-2825

Dimension of worktable: 350x400

Effective working area of worktable: 310x320

Diameter of column: Φ95

Power of motor: 0.75

Machine dimension: 700x500x1900

Packing dimension: 830x530x1950

Net weight/Gross weight: 300/350

Accessories: Shalf sleeve for taper shank tool, Key type drill chuck, Connecting bar for drill chuck, Wedge for taper shank tool, Double open end spanner.
