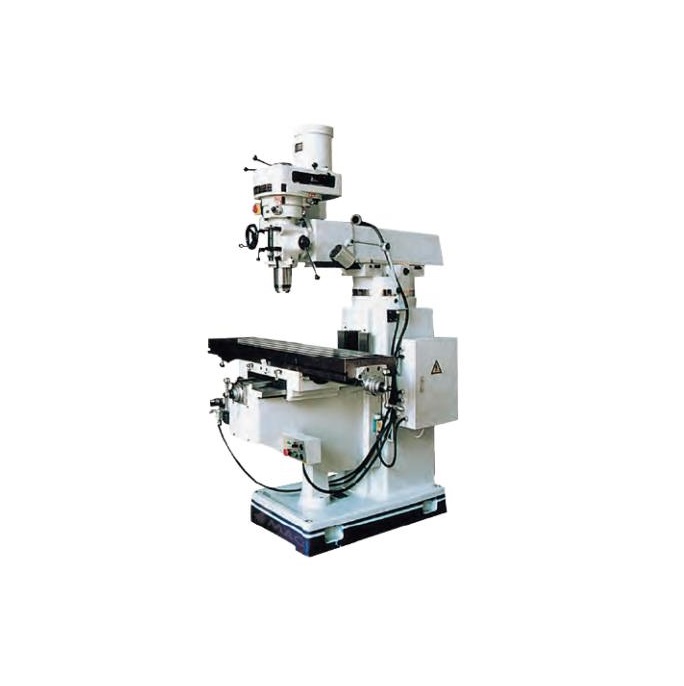

SMAC TM6330A Turret Milling Machine

Table size: 305x1370 (12"x54") / 305x1500 (12"x60")

Long travel: 870 / 1000

Cross travel: 380

Vertical travel: 430

T-slot No. and size: 3 x 16

Ram travel: 500

Distance from spindle nose to table surface: 0-350

Spindle hole taper: (Standard): ISo 40

Spindle travel: 127

Spindle speed: (standard): (shift gradel) 50Hz 65-4500 60Hz: 80-5440

(optional): (variable) 65-3750

Auto quill feed: (three steps): 0.04(0.0015"/0.08(0.003")/0.15(0.006") mm/revolution

Spindle motor: 2.25Kw/5HP

Head swivel: 90°

Head tilting: 45°FIX

Dimension of package:

one miller per case: 1566x1650x2080

two miller per case: 1720x1800x2175

Weight (kg): 1750
