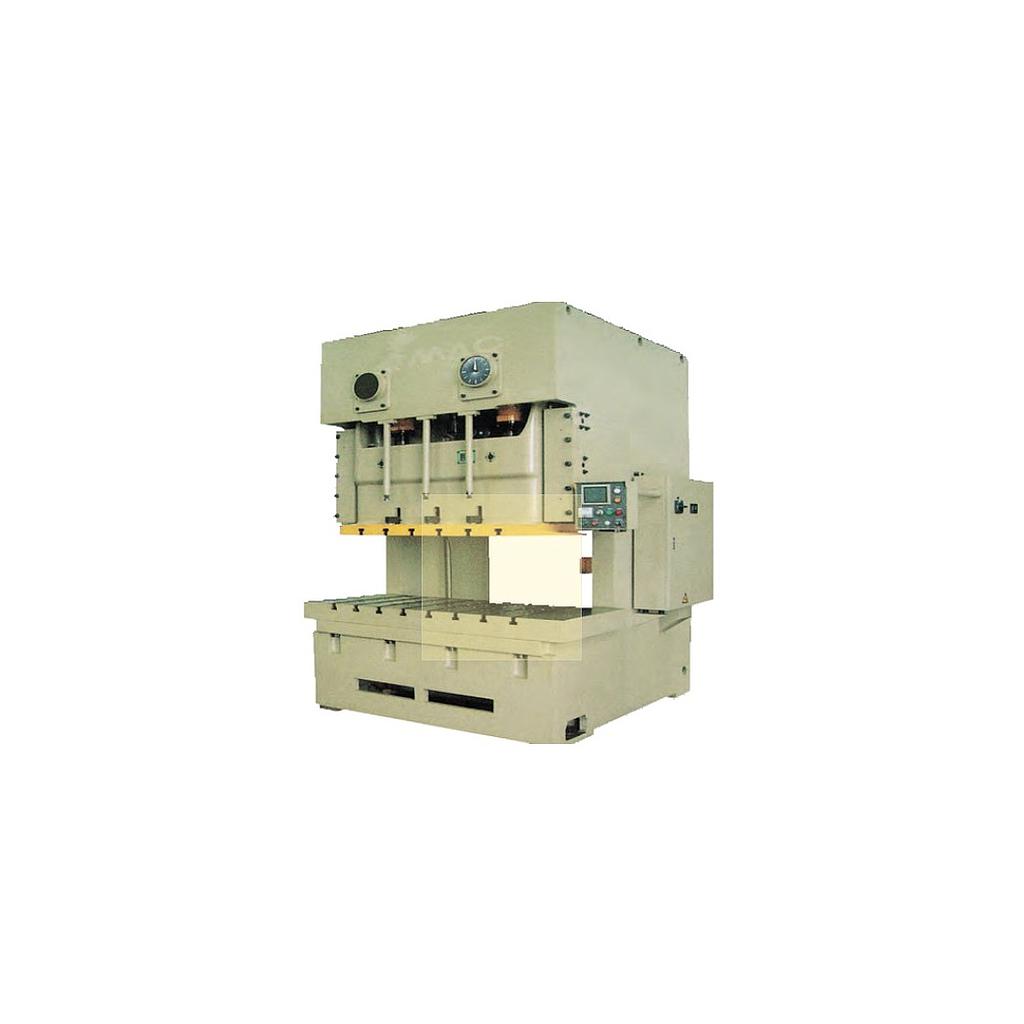

SMAC PTC-80BS C-type Two-point Press
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Nominal Pressure (kN): 800
Nominal Pressure Stroke (mm): 2.5
Stroke of Slide (mm): 90
Strokes
Variable (S.P.M): 50-90
Max. Die Set Height (mm): 350
Die Height Adjustment (mm): 80
Distance between Uprights (mm): 1310
Size of Table
L-R (mm): 1650
F-B (mm): 600
Thickness (mm): 150
Bottom Size of Slide
L-R (mm): 1200
F-B (mm): 460
Main Motor power (kw): 11
Overall Dimensions
F-B (mm): 2145
L-R (mm): 2210
Heigth (mm): 2290
Total Weight (kg): 15000
