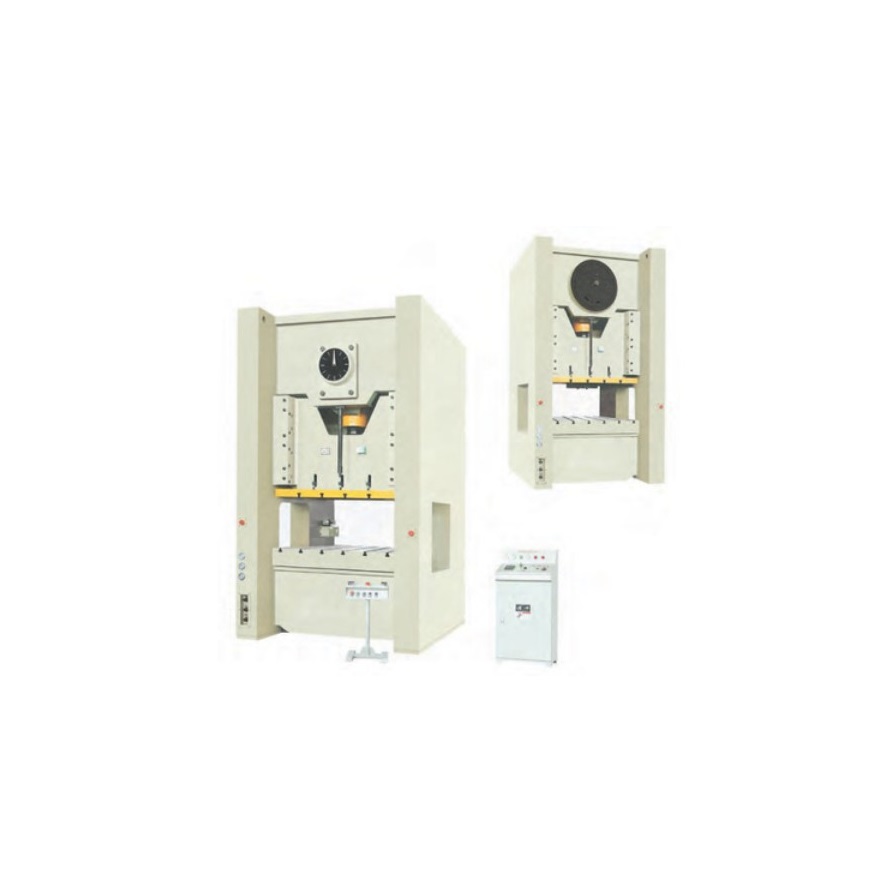

SMAC PSH-80 H-type Single Point Press

Nominal Pressure (kN): 800

Nominal Pressure Stroke(mm): 4

Stroke of Slide(mm): 120

Strokes(S.P.M): 50-80

Die Height Adjustment (mm): 80

Max. Die Set Height (mm): 400

Bottom Size of Slide (mm): 450 x 700

Distance Between Uprights (mm): 750

Left and right openring in uprights (mm): 500

Size of Table (mm): 500 x 750

Thickness of Table (mm): 90

Size Opening in the Table (mm): 120 x 500

Hole for inch Shank (mm): F50 x 60

Main Motor Power (KW): 7.5

Overall size (cm): 180 x 130 x 280

Weight (ton): 7
