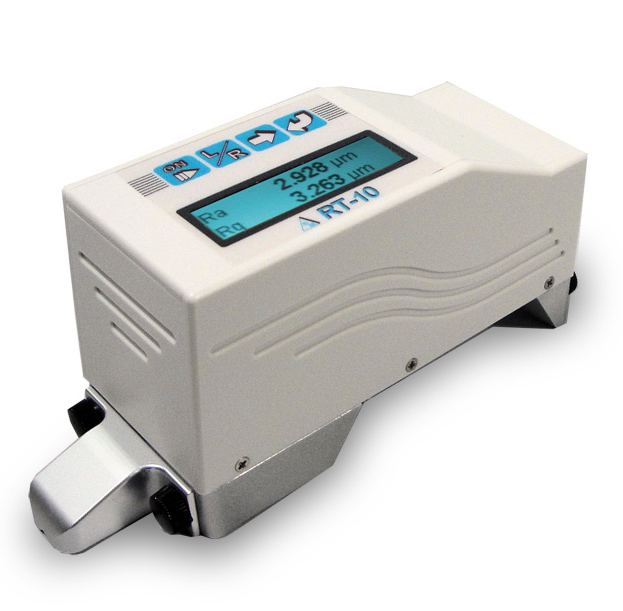

SM Metrology RT10 Plus Palmtop roughness tester (±200μm)

RT10 Plus (code 1.101). RT10 roughness tester is also available in the Plus version which features a plug-in connector that allows to interchange the pick-up, thus being able to take measurements on all types of surfaces, by simply mounting the most suitable pick-up.

Measurement range: ±200μm

Resolution: 0.001 μm

Cut-off lenght: 0.25 – 0.8 - 2.5 mm

Cut-off number: Selectable from 1 to 5

Traverse lenght: Up to 16 mm

Pick-up: Inductive, it can be rotated of 90° for lateral measurements (with SB50 probe)

Measurement parameters: 11 parameters (Ra, Rq, Rt, Rz, Rc, RSm, Rmr, Rmax, RPc - Pt, R, AR, Rx)

Unit of measurement: Millimetres and inches

Interface: LCD, 132x32 monochromatic graphic display and 4 waterproof membrane buttons

Languages: Italian, French, English, German, Spanish, Portuguese

Memory: Up to 1000 measurements

Accessories: RT10 roughness tester, 110-230V battery charger, adjusting walls, 8 mm diameter end plug for connection to stand, roughness sample, Case, User Manual
