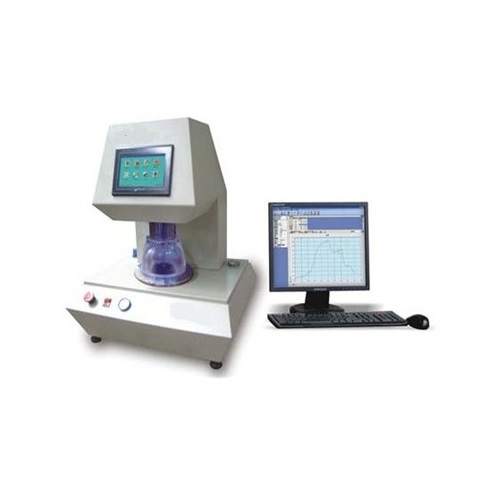

SKZ Industrial SKZ155D Auto Pneumatic Bursting Strength Tester (0-1.5 Mpa)

Test range: 0-1 .5 Mpa

Minimum scale value: 0.002 Mpa

Pressure mode: direct pressure two kinds of time pressure

Test Accuracy: ≤ ± 0.2% F • S

Flexible diaphragm thickness: ≤ 2mm

Test area: 50cm2 (φ79.8mm)

Pressure rate: nonlinear sub-pressure 0.1-0.5L/min

Safety cover: high transparent plexiglass

Power: AC220V/50Hz 800W

Dimensions: 560 × 450 × 580mm (host L × W × H)

Weight: 60kg

Optional test area:

Area（cm2): 100/ 50/ 10/ 7.3

Diameter（mm): 112.8/ 79.8/ 35.7/ 30.5
