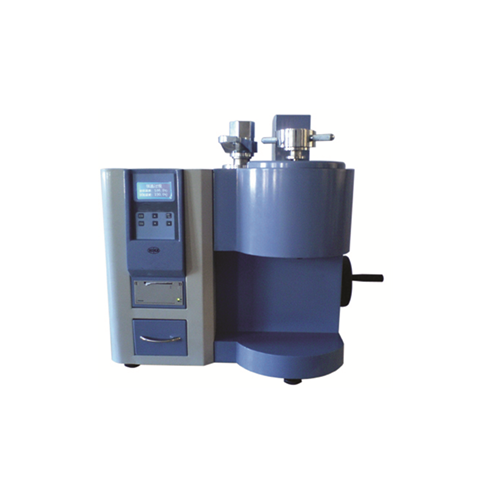

SKZ Industrial SKZ145 LCD Melt Flow Indexer (50-400℃)

Measuring range:

0. 01-600.00 g/10min (MFR)

0. 01-600.00 cm/10min(MVR)

0.001-9.999 g/cm (melt density)

Temperature range: 50-400℃

Temperature precision: ±0.5℃, resolution: 0.1℃

Material canister inside diameter: 9.55±0.025mm, length: 160mm

Piston diameter 9.457±0.01mm, mass: 106g

Mould inside diameter: 2.095mm, length: 8±0.025mm

Load: full load

Weights: 0.875Kg, 1.290Kg, 1.835Kg, 3.475Kg, 4.675Kg, 5.000Kg, 5.000Kg one each (may freewill combination )

Accuracy: 0.5%

Cleaning accessories: clear material pole

Calibration accessories: water level bubble

Measuring method: MFR MVR/ DENSITY

Supply Power: 220V±10% 50Hz Heat up power: about 550W

Outline size: (length*width*height) 600*400*500 (unit: mm)

Net weight: 85Kg, Gross weight: 135Kg

Packing list:

Mainframe: one

Base weight: one

Weight: one (six sort’s seven pieces)

Piston: one

Mould: one

Oriented sheath: one

Water level bubble: one

Hopper: one

Clear material pole: one

Mould bore: one

Material check: one

Provide English explanation : one each

Optional accessory: Balance AR124CN
