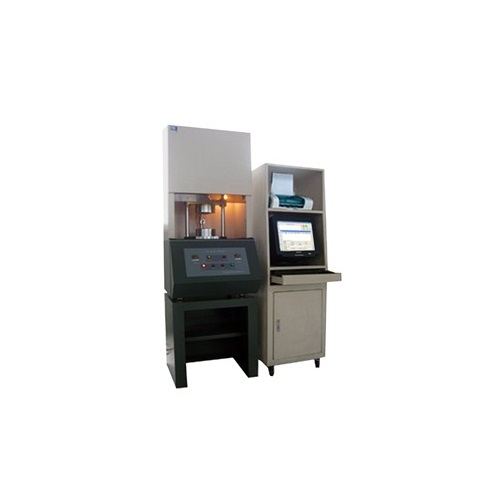

SKZ Industrial SKZ132 Mooney viscosity (0~200, PC type)

Test data: Mooney viscosity, Mooney scorch

Standard: ISO289, ISO667, GB/T1232-92 HG/T3432-1989

Temperature measuring:

(1) The temperature measuring range: room temperature ~ 200 ℃

(2). Temperature Resolution: 0.1 ° C

(3). Temperature fluctuation: ± 0.3 ° C (after feeding)

Temperature rise time: ≤ 10min

The maximum test time: Mooney: 10min;

Scorch: 120min (modification time during testing)

Mooney value of measuring range: 0 to 200

Mooney value resolution: 0.1 Mooney value

Mooney value measurement accuracy: ± 0.5 Mooney value

Calibrate accuracy: 100±0.5 Mooney value

Rotor speed: 2 ± 0.02r/min

Rotor dia. : big: 38.1±0.03mm, small: 30.48±0.03mm

Power supply: AC220V ± 10% 50HZ

Dimensions: 645mm × 580mm × 1300mm

Weight: 210kg

- Packing list:

Host 1PC

Mooney software 1PC

Calibration Poise 1UNIT

Large and small rotor 2 PER

Seal Ring 4PCS

Canvas gloves 1PAIR

Copper screwdriver, Phillips screwdriver, slotted screwdriver 1PER

3,4,5,6 inside hexagonal wrench 1UNIT

Scissors 1PAIR

Wire brush 1PC

Datasheet
