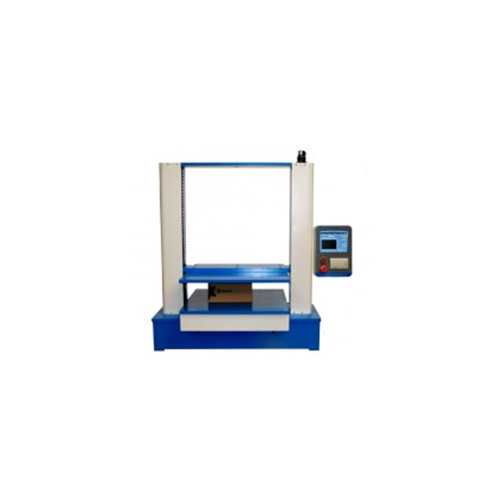

SKZ Industrial SKZ121 Box Compression Tester (10kn, 20kn, 50kn)

Load cell: 10kn, 20kn, 50kn (optional)

Working size: 600mm, 800mm, 1000mm, 1200mm, 1500mm (optional)

Speed: 1-60mm/min can be selected

Accuracy: ±1%

Deformation resolution: 0.1mm

Power: AC220V, 50HZ, 3A, 750W.

Resolving power minimum reading figure: 1N

Relative error of display figure:±2％

Relative alteration degree of display error:≤2％

Result error: 0.1％

Surveying veracity of tracking distortion: ±0.1mm

Speed range of different pressure :（1～40）mm/min

Returning speed in the test ( the speed up and down with manual manipulation ): (1～60) mm/min

The relative waving speed of planned-stacking-load test: ±4％

The tracking and pressure speed of stacking load test: 2mm/min
