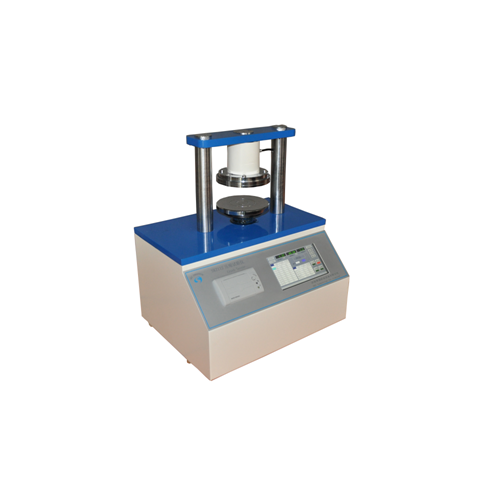

SKZ Industrial SKZ112 Crush Tester (0- 5000N)

Force measurement resolution: 1/200000

Force measurement accuracy: Better than 0.3%

Sampling frequency: 200Hz

Life of touch screen: About 100,000 hours

The effective number of touches: About 50,000 times

Display resolution: 0.01N

Load cell safe overload: 150%FS

Load cell accuracy level: C2

Load cell repeatability: 0.015%FS

Power: AC220V±10% 2A 50Hz

Variability: ＜1%

Measuring range: 0- 5000N

Platen parallelism: ≤ 0.05 mm

Stroke: (1–78)mm

Test speed: (12.5 ±2.5)mm/min

Platen diameter: 235mm

Display: English menu, touch display

Print output: Built-in thermal printer

Working environment: Temperature 0 ~ 40 ℃, relative humidity less than 85%

Dimensions: 345 mm(L)×300 mm(W)×505mm(H)

Weight: 50kg

Datasheet
