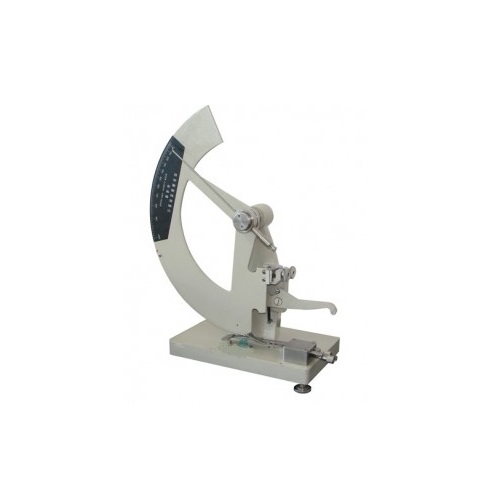

SKZ Industrial SKZ107A Paper Tearing Strength Tester (10～1000Mn)

Test range:（10～1000）Mn, Standard arm and Light arm are the standard fittings.

Lightest arm special customization according to need.

Standard arm: 10～1000）mN，degree minimum: 10mN

Light arm: (10～500)mN, degree minimum: 5mN

Lightest arm: (10～200)mN, degree minimum: 2mN

Veracity:

Error: Maximum range20%～80% ±1%, out range±0.5%FS

Repeat error: Maximum range20%～80% ≤1%, out range≤0.5%FS

Tearing arm: (104±1)mm

Beginning angle for tearing: 27.5±0.5

Tearing distance: (43±0.5)mm

Specimen size: (25×15）mm

Clamp distance: (2.8±0.3)mm
