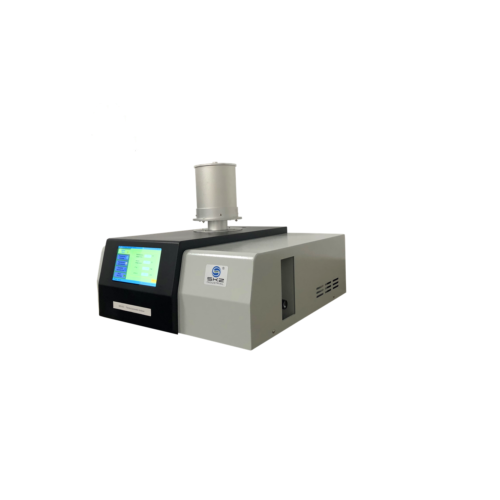

SKZ Industrial SKZ1053 Thermo gravimetric analyzer (1mg~3g)

Temperature range: Room temperature: ~1200℃,

Actual maximum temperature: 1100℃

Temperature resolution: 0.01℃

Temperature fluctuation: ± 0.01℃

Heating rate: 0.1 ~ 100 ℃ / min

Temperature control mode: Rising, Constant temperature

Program control: Program setting multi-stage heating and constant temperature

Cooling time: 15min (1000℃ ~ 100℃), Natural cooling

Balance measuring scope: 1mg~3g , Can be expanded to 50g

Sensitivity: 0.01mg

Constant temperature and time: 0 ~ 300min (set arbitrarily)

Display: Liquid crystal display (LCD), English version

Atmosphere device: Built-in gas flow meter, includes switch two path gas and control flow volume

Software: Record TG curves automatically, Processing data and print

Data interface: USB interface

Power: AC220V 50Hz

Size: 500*400*430mm
