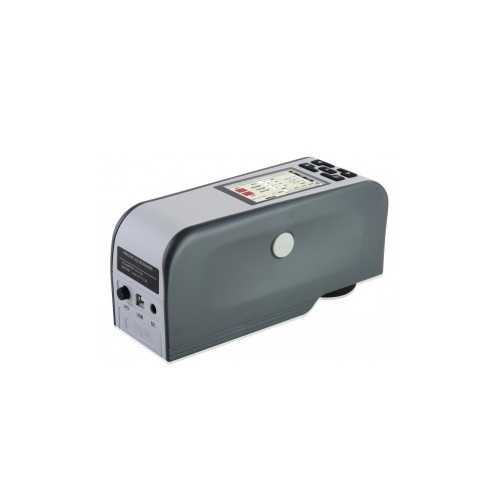

SKZ Industrial SKZ102C Portable Color Meter (L: 0~100)

Display Mode: CIELAB, CIELCH, CIEXYZ, CIELUV, HunterLAB, sRGB

Color Difference Formula: △E*ab, △ECMC, △EISO, △ECIE94, △EFCMⅡ, △ELuv, △Ehunter, △EsRGB

Yellowness and Whiteness: Ganci whiteness, ISO brightness, YI yellowness

Illumination Condition: CIE Recommendation: 8/d 45/0 Optional

Light Source: LED blue excitation

Sensor: Photodiode array

Measurement Caliber:φ4mm/φ8mm/φ16mm Alternative

Measurement Condition:

Observer: CIE 10° Standard observer

Light source: A C D50 D65 F2(CWF) F7 F11(TL84) F12(U30)

Contain light way: SCI SCE

Measurement Range: L: 0 to 100

Repeated Accuracy: △E<0.03(take the deviation average after 30 times measuring the whiteboard)

Table Difference: △E<0.2

Measurement Interval: 0.5 Sec.

Average Measuring Function: Average measuring frequency: 1-32 times

Color Simulation Function: yes

Storage Capacity:

Type sample data : 100 with testing sample data: 200

Whiteness/yellowness data: 200

Language Patterns: English/Simplified Chinese/Traditional Chinese

Quality Control Software: 《Color-Analysis System》 software

Battery Charging Time: 8 hrs

Battery: Li-ion battery, 5000 times Measurement

Lifetime of Bulb: 5 years more than 1.6 million measurements

Display Screen: TFT true color 2.8inch@(16:9) Resolution ratio:400×240

Interface of External: USB2.0 (USB-B)- data communication with 《color analysis system》software; RS-232 (115200bps)- connected with micro printer

Working Temperature Range: 0℃-40℃（32℉-104℉)

Storage Temperature Range: -20℃-50℃（-4℉-122℉)

Humidity Range: Relative humidity less than 85%,without condensation

Weight: 700g

Size: 199*68*90mm

Size of Exterior Package: 400*240*340mm

Standard Accessories: Standard whiteboard/Standard black cavity/3000mAH Li-ion battery/AC adapter/USB Data line/CD《Color analysis software》/User manual/Warranty card

Optional Accessories: Flour measuring device/Liquid measuring device/Micro printer
