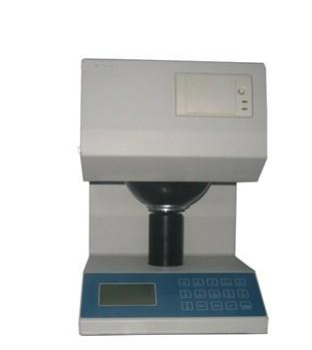

SKZ Industrial SKZ102B Brightness Color meter

Simulate D65 illumination lighting. Adopt CIE1964 supplement color system and CIE1976

(L * a * b *) color space color difference formula.

Adopt d / o observation geometry lighting conditions. Diffusion ball diameter of 150 mm, 25mm diameter of test hole, with light absorbers to eliminate the sample mirror reflected light.

Indication accuracy: chromaticity coordinates 0.0001, and the remaining 0.01

Stability of the value: After warm-up, 30min period, Δf ≤ 0.1.

Repetitive: RX, RY and RZ S ≤ 0.10

Chromaticity coordinates S ≤ 0.0010

R457 value S ≤ 0.10

Sample size: test plane no less than Φ30 mm, thickness no more than 40 mm.

Power: AC 220V 10%, 50HZ, 0.4A.

Communication Interface: RS-232.

Working situation: Temperature 5 ~35 ℃, relative humidity no more than 85%.

Size and weight: 364 × 264 × 400 (mm), 20kg.
