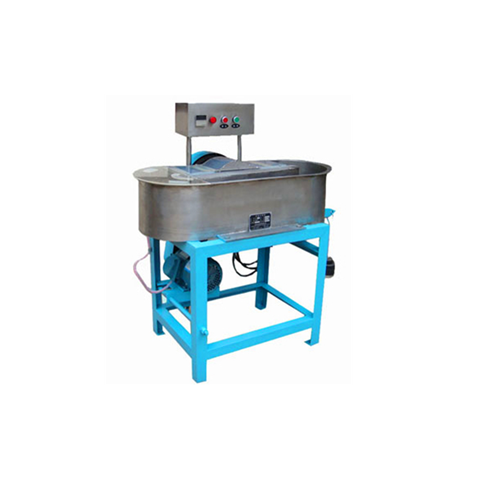

SKZ Industrial SKZ1027A Laboratory Valley pulp Beater (23 l)

Capacity: 23 liters

Beating capacity :200-700g (standard beating quantity: 360g dry pulp, concentration: 1.57%);

Knife roll size: Φ195 × 155

Knife roll speed: 500 ± 10/min

Bottom Blade size: 160 × 16 × 3.2 (7)

Blade Size: 160 × 70 × 4.7 (32)

Load lever arm (54 ± 1) N;

Motor: Y801-4, 0.55KW;

Motor speed: 1400 r / min;

Power: 1500W;

Dimensions: 1230mm × 850mm × 1180mm

Weight: 200 kg

Pulp Chests wall thickness: ≥ 4mm
