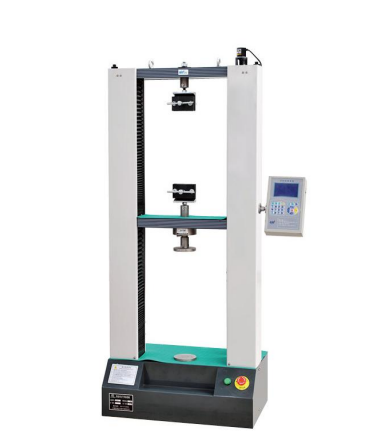

SKZ Industrial SKZ101 Double Column Tensile Tester (5KN)

Max. test force: 5KN

Precision: 1%

Measuring range of load: 1%-100% of max. force

Relative error of indicating value of test force: 1%

Resolution of test force: 1/300000

Measuring range of deformation: 2%-100%

Adjusting range of load control rate: 0.005%-5%FS/S

Precision of load control rate: When rate is less than 0.05%FS, the precision is 1%

When rate is more than 0.05%FS, the precision is 0.5%

Adjusting range of deformation rate: 0.005-5%FS/S

Precision of deformation rate: When rate is less than 0.05%FS/s, the precision is 1%

When rate is more than 0.05FS/s, the precision is 0.5%

Adjusting range of displacement: 0.5-500mm/min

Precision of displacement rate: 0.2%

Range of constant load, constant deformation,constant displacement: 0.5%-100%FS

Precision of constant load, constant deformation, constant displacement:

When the set value is more than 10%FS, the precision is 0.5%

When the set value is less than 10%FS, the precision is 1%

Distance between columns: 900mm

Voltage and power(should connect to the ground): 220V, 50Hz, 400W

Configuration of the machine:

Main machine: Door structure 1 set

Precise ball screw: Taiwan TBI 2 pairs

Load cell: 5KN 1 PC

Hand control box: Control the moving of crossbeam 1 PC

Tensile accessories: Wedge clamping body 1 set
