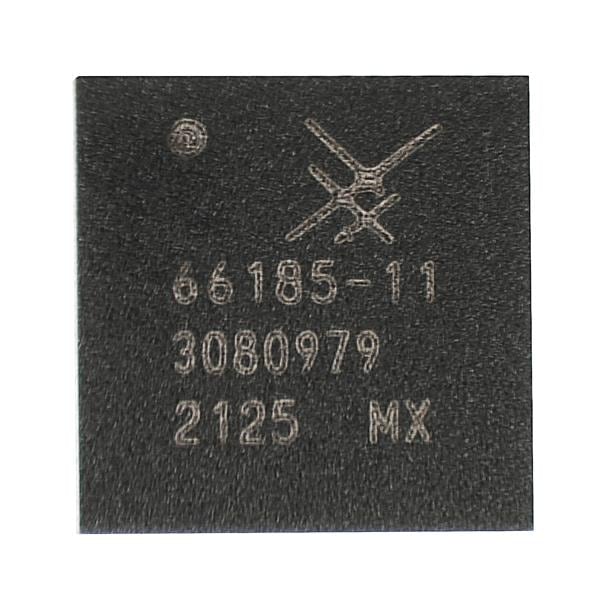

Skyworks Solutions Inc. SKY66185-11 Power Amplifiers 851-894MHz Gn 36.5dB OP1dB 30.8dBm

Gain: 36.5 dB

Technology: Si

Unit Weight: 7.326 g

Mounting Style: SMD/SMT

Test Frequency: 851 MHz

Development Kit: TW22-D115-002

Input Return Loss: 10 dB

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Operating Frequency: 851 MHz to 894 MHz

Pd - Power Dissipation: 2.3 W

Operating Supply Current: 420 mA

Operating Supply Voltage: 3.3 V

P1dB - Compression Point: 30.8 dBm

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
