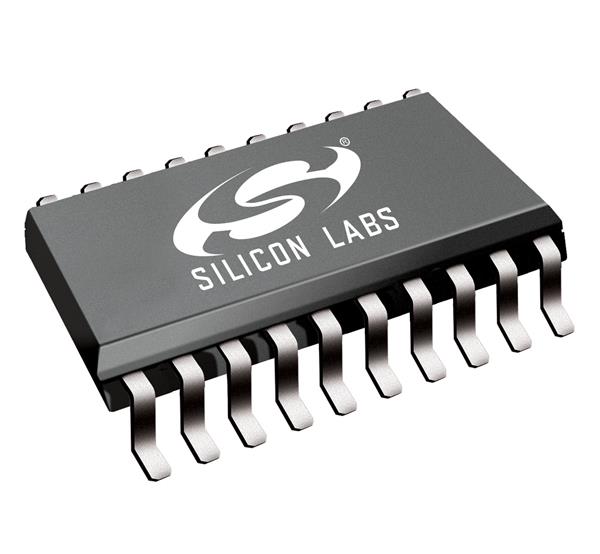

Skyworks Solutions Inc. SI8384PM-IU General Purpose 2.5 kV 8-channel PLC input isolator with 4 high-speed channels & debounce

Polarity: Unidirectional

Shutdown: Shutdown

Data Rate: 2 Mb/s

Unit Weight: 241.200 mg

Qualification: AEC-Q100

Isolation Type: Capacitive Coupling

Mounting Style: SMD/SMT

Development Kit: Si838xISO-KIT

Forward Channels: 8 Channel

Reverse Channels: 0 Channel

Isolation Voltage: 2500 Vrms

Maximum Fall Time: 3.7 ns

Maximum Rise Time: 3.9 ns

Moisture Sensitive: Yes

Number of Channels: 8 Channel

Protocol Supported: General Purpose

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.25 V

Pd - Power Dissipation: 1.2 W

Propagation Delay Time: 100 ms

Pulse Width Distortion: 80 ns

Operating Supply Current: 4.8 mA, 5.4 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
