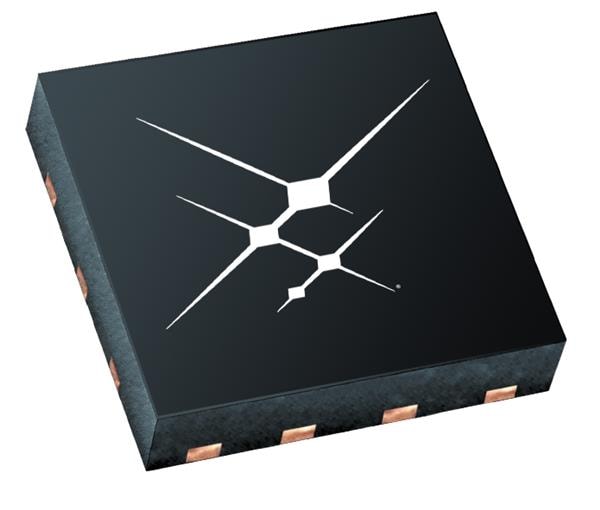

Skyworks Solutions Inc. SI8233BB-D-IM High-Side, Low-Side 2.5 kV 8 V UVLO HS/LS isolated gate driver

Features: Industrial, High Electromagnetic Immunity

Shutdown: Shutdown

Fall Time: 12 ns

Rise Time: 12 ns

Logic Type: TTL

Technology: Si

Unit Weight: 508.400 mg

Configuration: High-Side, Low-Side

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Current: 4 A

Output Voltage: 8 V

Development Kit: SI8233-KIT

Isolation Voltage: 2.5 kVrms

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Moisture Sensitive: Yes

Number of Channels: 2 Channel

Input Voltage - Max: 5.5 V

Input Voltage - Min: 4.5 V

Supply Voltage - Max: 24 V

Supply Voltage - Min: 6.5 V

Pd - Power Dissipation: 1.2 W

Propagation Delay - Max: 45 ns

Operating Supply Current: 3.5 mA

Maximum Turn-On Delay Time: 60 ns

Maximum Turn-Off Delay Time: 60 ns

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 2.7 Ohms
