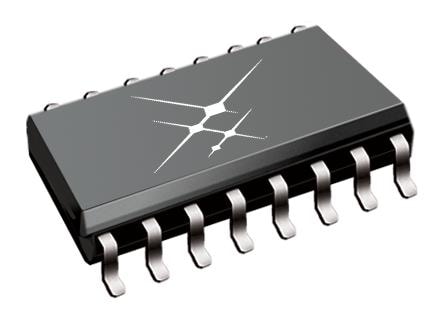

Skyworks Solutions Inc. SI3000-C-FS Audio CODEC, Voice Voiceband codec 84 dB A/D & D/A voice codec

Width: 5 mm

Height: 1.65 mm

Length: 7 mm

Resolution: 16 bit

Unit Weight: 189.320 mg

Interface Type: Serial

Mounting Style: SMD/SMT

Number of ADCs: 1 ADC

Number of DACs: 1 DAC

Conversion Rate: 12 kHz

Moisture Sensitive: Yes

Number of ADC Inputs: 3 Input

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 3 V

Number of DAC Outputs: 2 Output

Operating Supply Voltage: 3 V to 5.25 V

SNR - Signal to Noise Ratio: 84 dB ADC/84 dB DAC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
