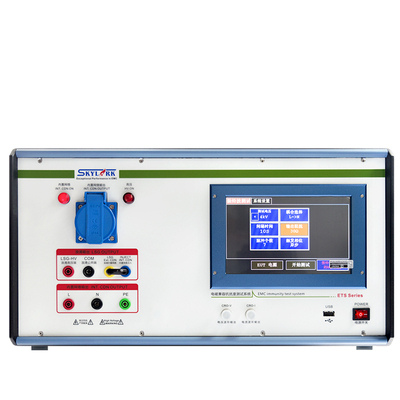

Skylark RWG-6K16 Ring wave generator (250V ~ 6000V ± 10%)

Open voltage oscillation frequency (1/T): 100kHz±10%

Open output voltage (PK1): 250V~6000V）±10%

Open voltage waveform frontier (T1) (10% to 90%): 0.5 s at PK1±30%

Open voltage attenuation rate:

- 40%<（PK2）/（PK1）<110%

- 40%<（PK3）/（PK2）<80%

- 40%<（PK4）/（PK3）<80%

Short-circuit current wave front (T2) (10% to 90%): P1 ≤0.9 s

Short-circuit current (PK1) at 3500V: 292A ± 10% at 12 o'clock

Short-circuit current (PK1) at 3500V: 117A ± 10% at 30 o'clock

Adjacent pulse interval time: 1s~99s

The number of pulses: 1 to 9999 times

The output method: Automatic positive and negative polarity switching or alternating

Output impedance: 12Ω，30Ω

Phase injection mode: Asynchronous or synchronized (0 to 360 degrees)

Trial coupling/decoupling network

Optional coupling of the decoupled network of the lightning surge generator
