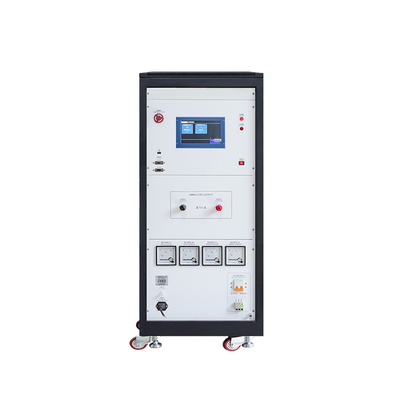

Skylark PFM-1000 Power frequency magnetic field generator
Magnetic field coil: 1 square meter (other specifications can be customized)
Magnetic field intensity: 0A/m~1000A/m continuously adjustable
Output current: AC
Number of experiments: 999
Interval time: 1~99 minutes
Current injection time: 1 second to 99 minutes
Current distortion rate: <5%
Working mode (current range of continuous work): 1A~100A
Working mode (current range of short-time work): >100A~500A, 1~5s, ＞500A~1000A, 1~3s
Operation method: manual, semi-automatic, fully automatic
Power supply: AC220V 50/60Hz
Ambient temperature: 15°C-35°C
Product Standard:
- GB/T 17626.8
- IEC 61000-4-8
- EN 61000-4-8
