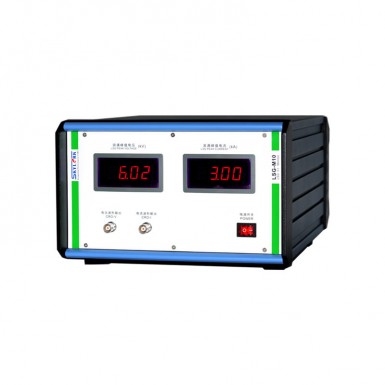

Skylark LSG-M10 Surge monitor
ManufacturerSkylark(View more products from this manufacturer)
ModelLSG-M10
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Test the maximum peak voltage: ±10kV ±10％
Test the maximum peak current: ±5kA ±10％
Voltage attenuation ratio: 1000:1
Current attenuation ratio: 1000:1
Test accuracy: Better than 5%
Surge peak voltage, current display
LED sync display
Surge voltage, current monitoring output
BNC coaxial terminals, ≥ 1M
Use the environment
Temperature: 10%-75% relative humidity at 15C-35C
System power: AC220±10%, 50/60Hz, approx. 30W
Form factor: 260mm wide× 170mm high× 360mm deep
Weight of the whole machine: About 5kg
