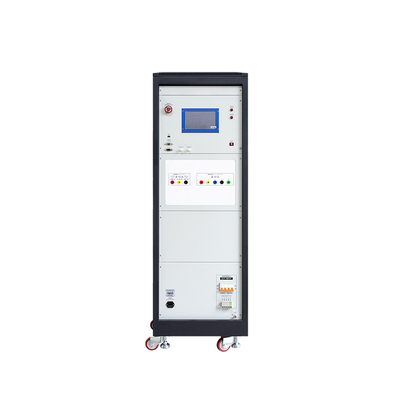

Skylark LSG-255C1 Impulse voltage generator (20kV ±5%)

Open circuit output voltage: 20kV (Max) ±5%

Front time: 1.2μs ±30%

Pulse half peak time: 50μs ±20%

Output polarity: Positive, negative, positive and negative cycle

Output impedance: 500Ω±10%

Trigger method: Automatic or manual, single trigger

Frequency: 1-9999 times

Surge interval time: 3-999s (where 3s is the inherent charging time of the device)

Use environment: Temperature: 15°C－35°C relative humidity 10%－75%

System power: AC220±10%, 50/60Hz
